01 - Cover
02 - Splasher/light
03 - Control Panel
04 - Burner
05 - Lower Body

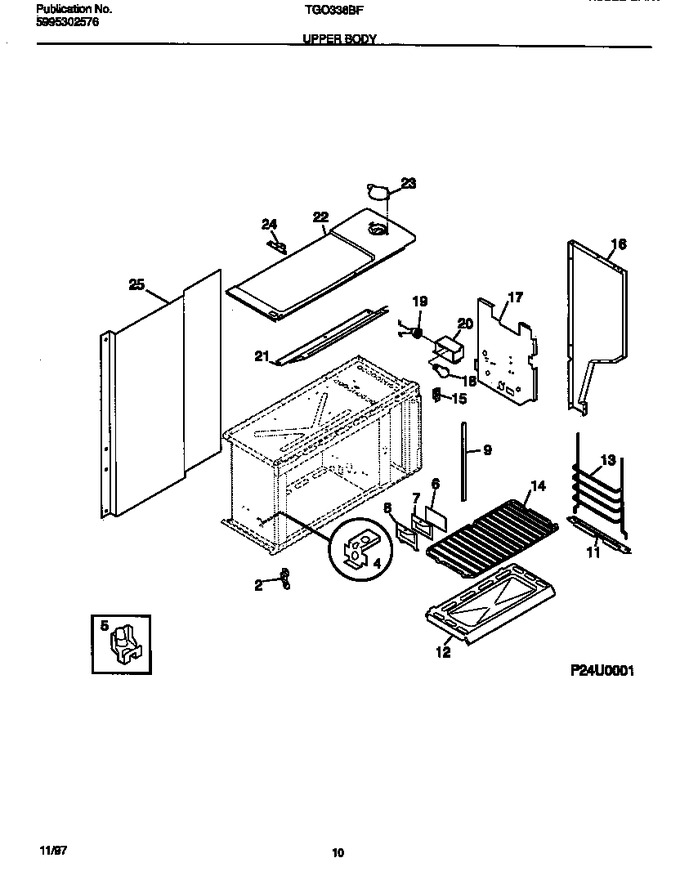

06 - Upper Body
07 - Top/drawer
08 - Lower Door
09 - Upper Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303051166 | Hinge-oven Door |
|
- | |||||
| 4 | 08011665 | Plate-bottom Hinge |
|
- | |||||
| 5 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 6 | 08011668 | Glass-oven Light Lens |
|
- | |||||
| 7 | 3200506 | Gasket-oven Light |
|
- | |||||
| 8 | 08011669 | Cover-light, Upper |
|
- | |||||
| 9 | 5303934092 | Seal-door |
|
- | |||||
| 11 | 318073101 | Glide-oven Rack |
|
- | |||||
| 12 | 318109801 | Bottom-oven |
|
- | |||||
| 13 | 5303934091 | Glide-oven Rack |
|
- | |||||
| 14 | 08011675 | Rack-oven, Flat |
|
- | |||||
| 15 | 5303935001 | Strike-door |
|
- | |||||
| 16 | 318025902 | Panel-bodyside, Almond, Rh |
|
- | |||||
| 16 | 318025912 | Panel-bodyside, Almond, Lh (not Illustrated) |
|
- | |||||
| 17 | 5303208706 | Shield-wool |
|
- | |||||
| 18 | 3201908 | Lamp-oven Light |
|
- | |||||
| 20 | 5303290773 | Box-light |
|
- | |||||
| 21 | 3200505 | Flue, Back |
|
- | |||||
| 22 | 5303290177 | Panel-top, Upper |
|
- | |||||
| 23 | 318036701 | Cover-outlet |
|
- | |||||
| 24 | 5303290130 | Hinge-oven Door, Upper Oven |
|
- | |||||
| 25 | 5303290095 | Back-main |
|
- | |||||
| *64978 | 3018614 | Pin-hinge |
|
- | |||||
| *64979 | 3200498 | Insulation-wool |
|
- | |||||
| *64980 | 3200500 | Bracket-connector |
|
- | |||||
| *64981 | 3200519 | Retainer, Upper Ovn Brnr |
|
- | |||||
| *64982 | 3204440 | Reflector, Aluminum Foil |
|
- | |||||
| *64983 | 316519700 | Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *64984 | 318132601 | Insulation |
|
- | |||||
| *64985 | 318132602 | Insulation |
|
- | |||||
| *64986 | 154079601 | Nut (Replaces: 3201885) |
|
$ 0.41 | |||||
| *64987 | 318090310 | Latch-door (Replaces: 318090300) |
|
Immediately | $ 44.61 | ||||
| 19A | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 19B | 5303286753 | Screw-socket, Starter (not Illustrated) |
|
- |
