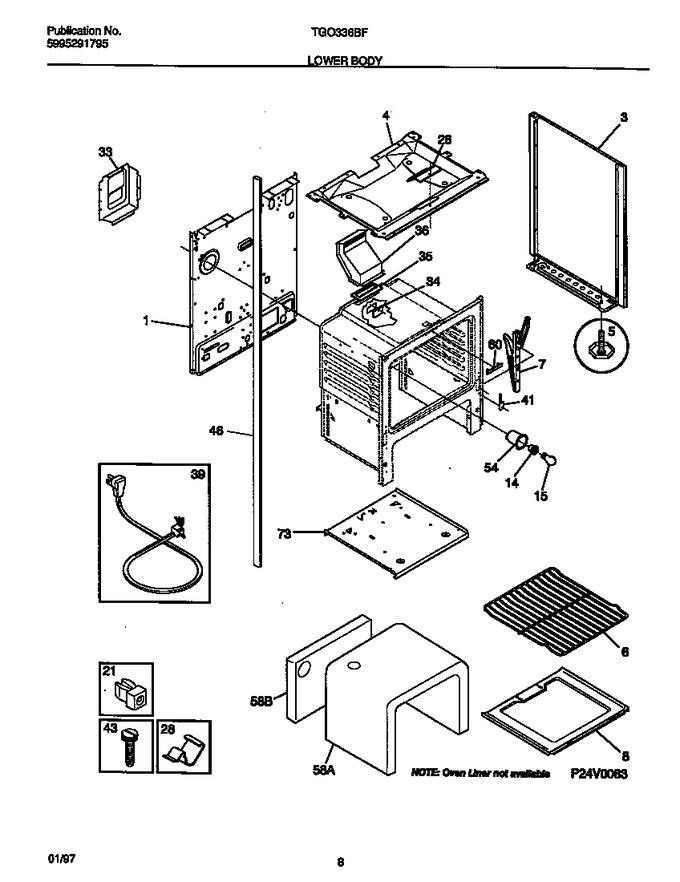

05 - Lower Body
06 - Upper Body
07 - Top/drawer
08 - Lower Door
09 - Upper Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316029412 | Back-main |
|
- | |||||
| 2 | 5303051166 | Hinge-oven Door |
|
- | |||||
| 3 | 316081028 | Panel-bodyside, White, Rh |
|
- | |||||
| 3 | 316081029 | Panel-bodyside, White, Lh (not Illustrated) |
|
- | |||||
| 4 | 3011597 | Burner Box |
|
- | |||||
| 6 | 5304531722 | Rack-oven (Replaces: 316067901) |
|
Immediately | $ 51.05 | ||||
| 7 | 316007001 | Hinge,oven Door ,(2) |
|
$ 234.55 | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 26 | 08067757 | Cover Plate |
|
- | |||||
| 28 | 3011813 | Clip-wire |
|
$ 14.79 | |||||
| 33 | 316055601 | Shield-spark Module |
|
- | |||||
| 34 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 35 | 08067965 | Gasket-flue |
|
- | |||||
| 36 | 3131904 | Flue |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1.438 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 54 | 5303271606 | Housing,oven Light |
|
- | |||||
| 58 | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 58 | 3203541 | Insulation, Oven Back |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 73 | 5303281627 | Base-broiler |
|
- | |||||
| 93 | 316055501 | Shield, Igntr Connector |
|
- | |||||
| *90849 | 3131620 | Shield-heat |
|
- | |||||
| *90850 | 08067962 | Fastener-wire |
|
- | |||||
| *90851 | 316519700 | Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *90852 | 5303280614 | Shield - Flue Profile |
|
- | |||||
| *90853 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *90854 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 39A | 5304534000 | Cord,electric Power (Replaces: 3131425) |
|
Immediately | $ 33.37 | ||||
| 39B | 08067961 | Fastener-power Cord |
|
- | |||||
| 46A | 5303208642 | Tube-post Lh |
|
- | |||||
| 46B | 5303208643 | Tube-post, Rh (not Illustrated) |
|
- | |||||
| 5A | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5B | 316116000 | Screw, Anti, Tip, (4) (not-illustrated) (Replaces: 316078600) |
|
$ 12.89 | |||||
| 5C | 5303288460 | Nut, T,type, Leveling Screw (not Illustrated) |
|
$ 27.14 | |||||
| 8A | 5303300406 | Panel-oven Bottom |
|
- | |||||
| 8B | 316064600 | Support, Oven Bottom (not-illustrated) |
|
$ 18.95 |
