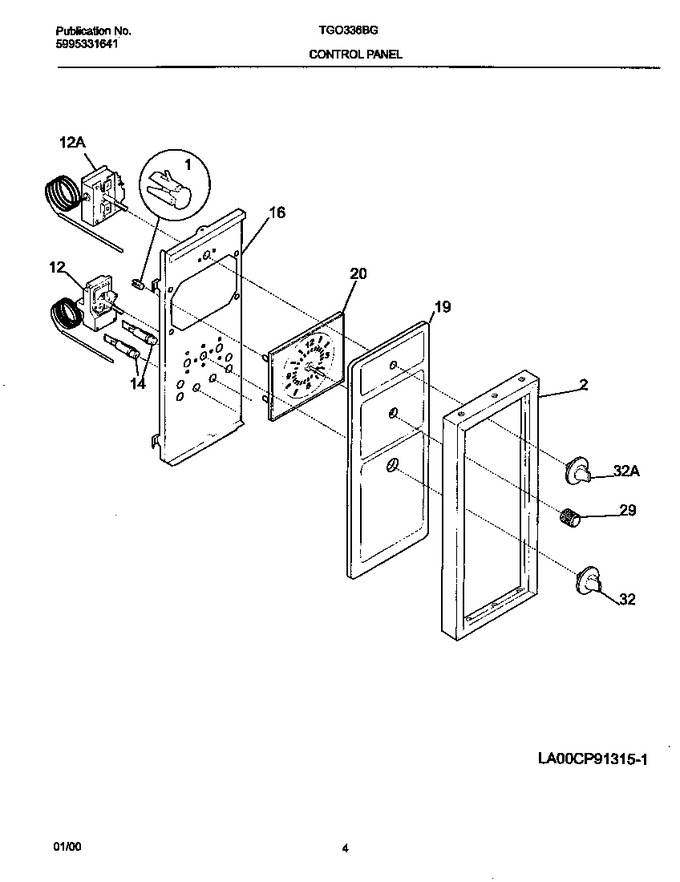

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011713		Fastener-clock		Appelez-nous	-
2	316013200		Trim-frame		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
16	318116701		Plate, Instrument Mtg		Appelez-nous	-
19	316007503		Panel-control, Glass		Appelez-nous	-
20	316090000		Clock/timer, Radial		Appelez-nous	-
29	316029008		Knob-clock				$ 40.16
32	316019165		Knob-thermostat, Lower		Appelez-nous	-
32	316019161		Knob-thermostat, Upper		Appelez-nous	-
12A	5303269995		Thermostat-oven		Appelez-nous	-
12B	5303269996		Thermostat-oven, Upper		Appelez-nous	-
