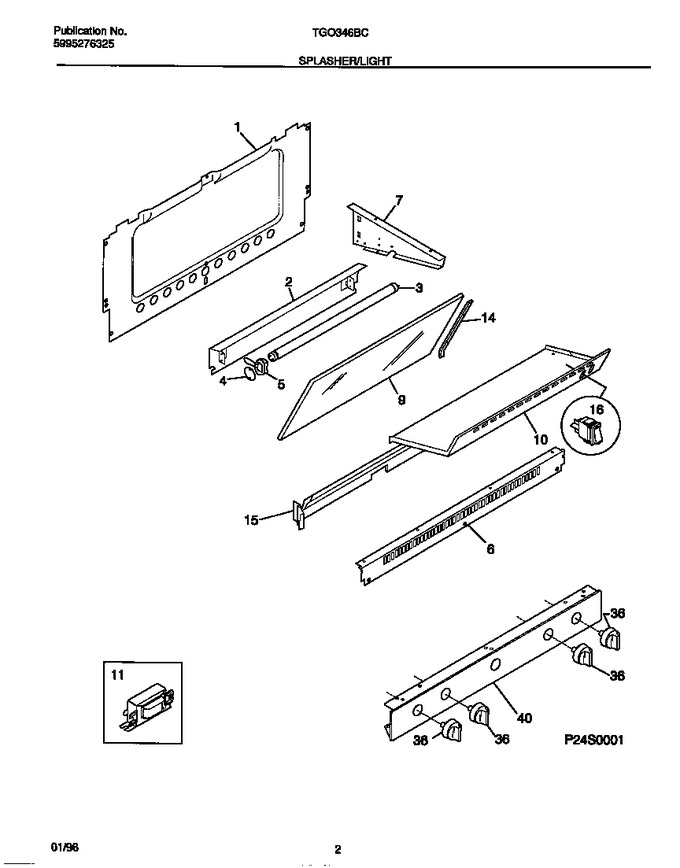

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204441		Panel-back		Appelez-nous	-
2	5303208612		Reflector, Work Light		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3012947		Insulator, Light		Appelez-nous	-
5	5303282715		Receptacle-starter		Appelez-nous	-
6	5303269816		Trim-vent		Appelez-nous	-
9	3200496		Glass-splasher		Appelez-nous	-
10	316012900		Panel-splasher-upper		Appelez-nous	-
11	5303051115		Ballast-lamp		Appelez-nous	-
15	5303209039		Trim-splasher Filler		Appelez-nous	-
16	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
36	316023020		Knob-control, (4)		Appelez-nous	-
40	316086811		Panel-manifold		Appelez-nous	-
*43920	08067960		Fastener, Clip Cable		Appelez-nous	-
*43921	3206218		Starter-lamp				$ 54.08
14A	08010549		Trim-splasher, Rh		Appelez-nous	-
14B	5303269815		Trim-splasher, Lh (not Illustrated)		Appelez-nous	-
7A	3200526		Support-upper Oven, Rh		Appelez-nous	-
7B	3200527		Support-upper Oven, Lh (not Illustrated)		Appelez-nous	-
