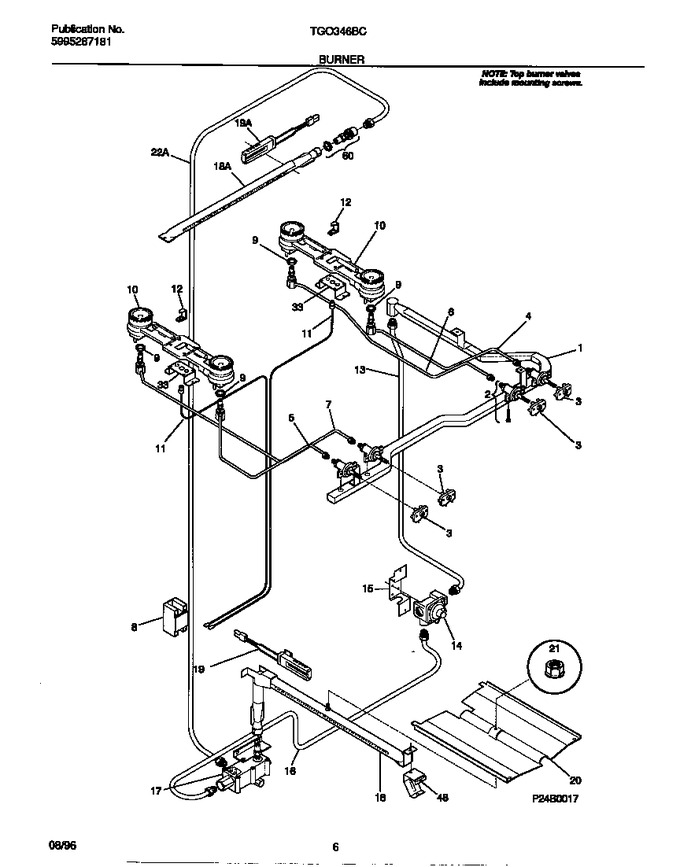

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316066201 | Manifold Pipe |
|
$ 65.47 | |||||
| 3 | 316032000 | Switch-igniter, (4) |
|
$ 58.70 | |||||
| 4 | 316051400 | Tube-burner, Rf |
|
- | |||||
| 5 | 316051401 | Tube-burner, Lf |
|
$ 147.84 | |||||
| 6 | 316051402 | Tube-burner, Rr |
|
- | |||||
| 7 | 316051403 | Tube-burner, Lr |
|
$ 149.19 | |||||
| 8 | 5303200669 | Spark Module |
|
- | |||||
| 9 | 3013279 | Nut, Special, 4 |
|
$ 2.34 | |||||
| 10 | 316057100 | Burner-top Double |
|
$ 110.99 | |||||
| 12 | 3016993 | Retainer-igniter |
|
- | |||||
| 13 | 316065005 | Tube, Aluminum, Rgltr To Manf, With Fittings |
|
$ 91.51 | |||||
| 14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 16 | 316065003 | Tube-valve To Rgltr, 3/8 |
|
$ 126.42 | |||||
| 17 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 18 | 3200502 | Burner-oven, Upper |
|
- | |||||
| 18 | 5303131634 | Burner-oven |
|
- | |||||
| 19 | 12400035 | Ignitor-oven, Upper (Replaces: 5303200508) |
|
Immediately | $ 60.44 | ||||
| 19 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 22 | 316065001 | Tubing-mixer, Upper |
|
- | |||||
| 33 | 3200277 | Bracket Burner Mtg |
|
- | |||||
| 48 | 3018603 | Bracket,support ,oven Burner |
|
- | |||||
| 60 | 316070300 | Mixer-straight |
|
- | |||||
| *27405 | 316055501 | Shield, Igntr Connector |
|
- | |||||
| *27406 | 3131637 | Bracket-mixer |
|
- | |||||
| *27407 | 3205396 | Retainer-oven Stud |
|
- | |||||
| *27408 | 316519700 | Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| 11A | 3200276 | Igniter-top Burner, Base, 50`` |
|
- | |||||
| 11B | 5303289336 | Igniter-top Burner, Base, 33`` |
|
- | |||||
| 20A | 3203265 | Baffle,oven Burner |
|
- | |||||
| 20B | 5303288409 | Baffle-oven Burner |
|
- | |||||
| 2A | 316050600 | Valve-top Burner, (2), With Mtg Screws |
|
- | |||||
| 2B | 316048200 | Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated) |
|
- |
