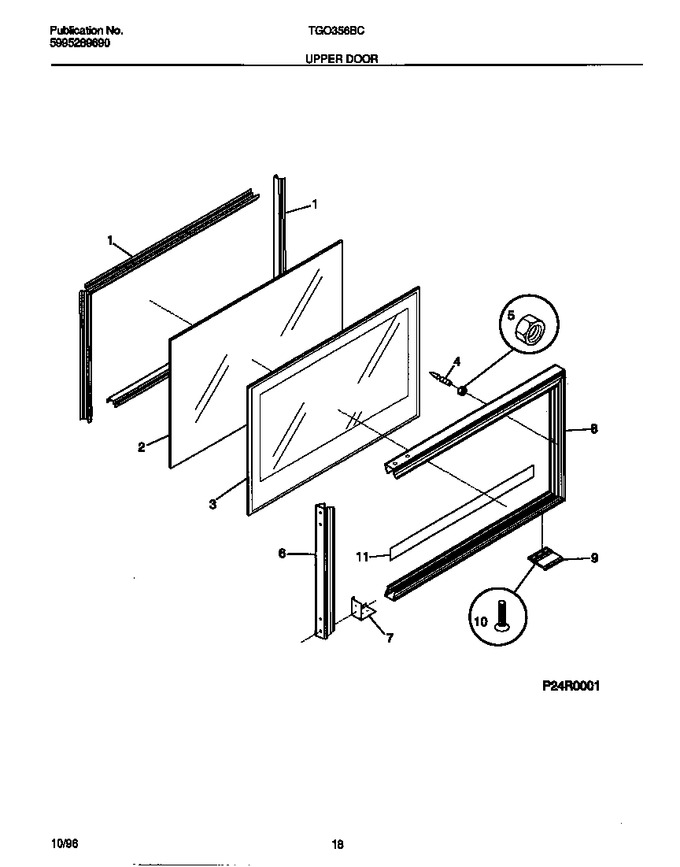

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Splasher/light
03 - Control Panel
04 - Burner
05 - Lower Body
07 - Upper Body
08 - Top/drawer
09 - Lower Door
10 - Upper Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08011721 | Spacer-glass |
|
- | |||||
| 2 | 08011722 | Glass-oven Door, Rear |
|
- | |||||
| 3 | 316090100 | Glass-oven Door, Outer/upper |
|
- | |||||
| 4 | 5303935001 | Strike-door |
|
- | |||||
| 5 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 6 | 5303290772 | Channel, Door |
|
- | |||||
| 7 | 08011727 | Gusset-oven Door |
|
- | |||||
| 8 | 316013100 | Channel, Frame |
|
- | |||||
| 9 | 08011729 | Handle-door |
|
- | |||||
| 10 | 5303284147 | Screw-handle |
|
- | |||||
| 11 | 3051302 | Spacer-door |
|
- |
