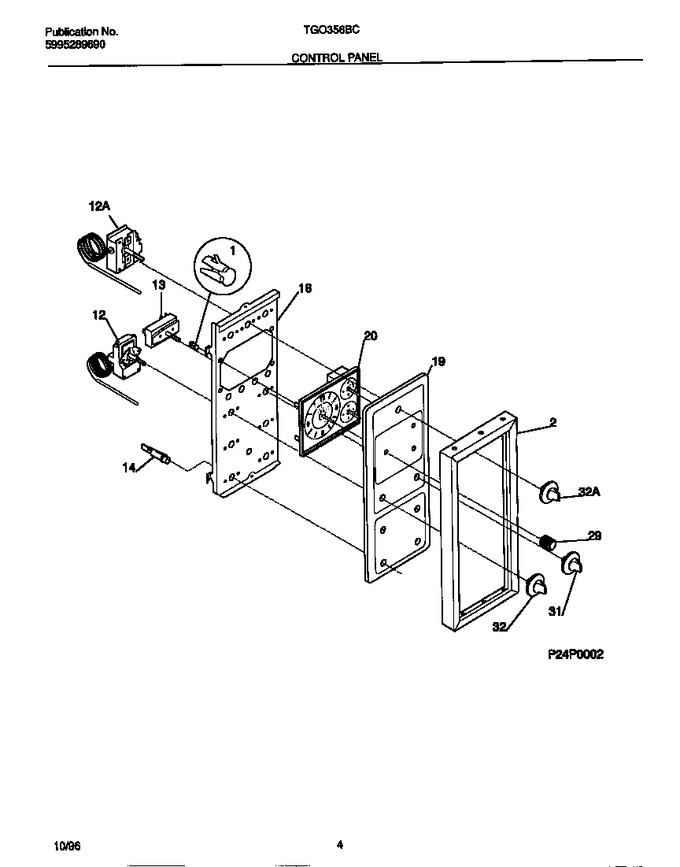

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011713		Fastener-clock		Appelez-nous	-
12	5303270076		Thermostat-oven, Upper		Appelez-nous	-
12	5303269995		Thermostat-oven		Appelez-nous	-
13	5303212678		Switch Selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
16	5303211043		Plate, Instrument Mtg		Appelez-nous	-
19	316007504		Panel-control, Glass		Appelez-nous	-
20	316007601		Clock/timer, Radial		Appelez-nous	-
29	316029008		Knob-clock				$ 40.16
31	316019167		Knob-selector		Appelez-nous	-
32	316019161		Knob-thermostat, Upper		Appelez-nous	-
*56883	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*56884	5308010401		Bushing-control Panel Glass		Appelez-nous	-
32A	316019164		Knob-thermostat				$ 105.16
32B	316019165		Knob-thermostat, Lower		Appelez-nous	-
