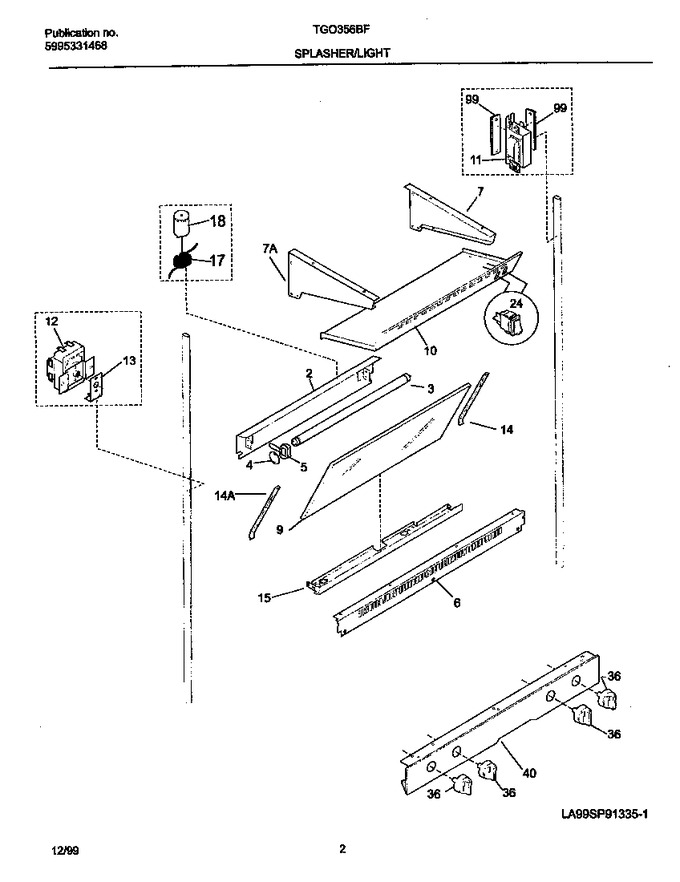

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303208612		Reflector,work Lig		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3012947		Insulator, Light		Appelez-nous	-
5	5303290187		Receptacle		Appelez-nous	-
6	316084301		Trim-vent		Appelez-nous	-
7	3200527		Support-upper Oven,lh		Appelez-nous	-
7	3200526		Support-upper Oven, Rh		Appelez-nous	-
9	3200496		Glass-splasher		Appelez-nous	-
11	316099800		Ballast-lamp		Appelez-nous	-
12	08067928		Thermostat-oven, Sc		Appelez-nous	-
13	3051348		Angle-s/c Bracket		Appelez-nous	-
14	5303269815		Trim-splasher,lh		Appelez-nous	-
14	08010549		Trim-splasher, Rh		Appelez-nous	-
15	318002800		Trim-splasher Filler		Appelez-nous	-
17	5303282715		Receptacle-starter		Appelez-nous	-
18	3206218		Starter-lamp				$ 54.08
24	5308015487		Switch, Oven Light, Rocker Type				$ 61.43
36	316023020		Knob-control, (4)		Appelez-nous	-
40	316086816		Panel-manifold		Appelez-nous	-
99	5303304544		Spacer		Appelez-nous	-
*11000	08067960		Fastener, Clip Cable		Appelez-nous	-
*11001	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
*11002	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*11003	5303323133		Screw < 8-18 X 1/2 >,8-18 X 1/2		Appelez-nous	-
