01 - Cover


02 - Splasher

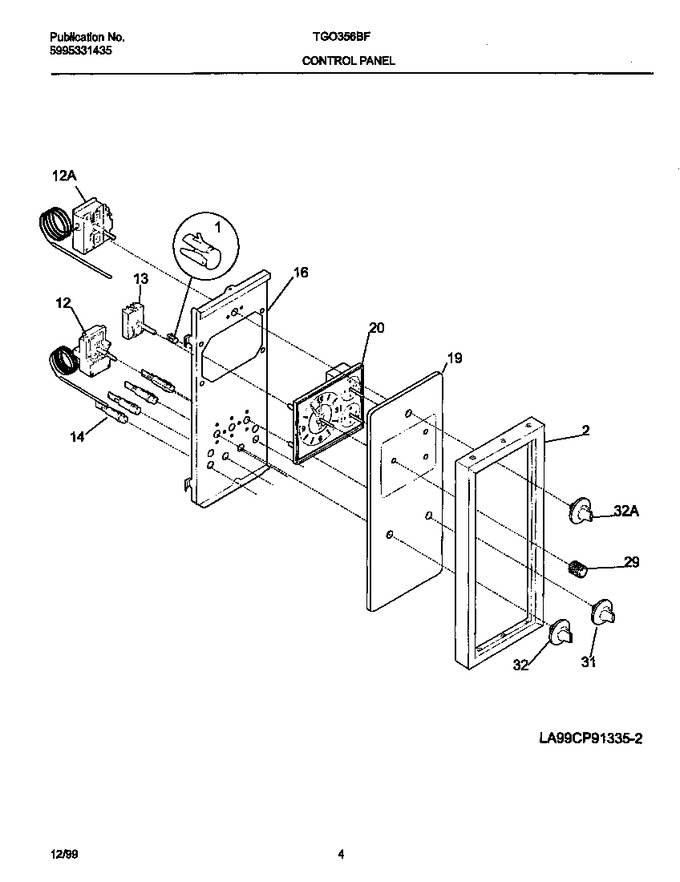

03 - Control Panel


04 - Burner


05 - Lower Body


06 - Upper Body


07 - Top/drawer


08 - Lower Door


09 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011713		Fastener-clock		Appelez-nous	-
2	316013200		Trim-frame		Appelez-nous	-
12	5303270076		Thermostat-oven, Lower		Appelez-nous	-
12	318059204		Thermostat-oven Upper,upper		Appelez-nous	-
13	5303212678		Switch Selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
16	318116703		Plate Instr. Mtg Black,instrument Mtg		Appelez-nous	-
19	316007504		Panel-control, Glass		Appelez-nous	-
20	316007601		Clock/timer, Radial		Appelez-nous	-
29	316029008		Knob-clock				$ 40.16
31	316019167		Knob-selector		Appelez-nous	-
32	318165301		Knob Thermos.oven Upper,upper Thermost		Appelez-nous	-
32	316019164		Knob-thermostat Lower,lower Oven				$ 105.16
