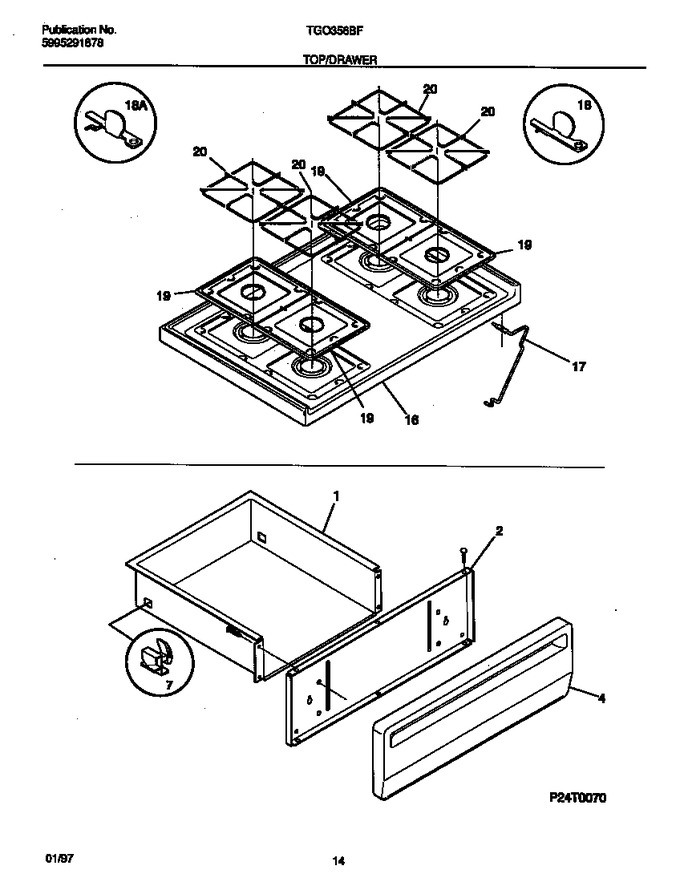

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Splasher/light
03 - Control Panel
04 - Burner
05 - Lower Body
07 - Upper Body
08 - Top/drawer
09 - Lower Door
10 - Upper Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated) |
|
- | |||||
| 4 | 316021113 | Screw-drawer Pnl (not Illustrated) |
|
- | |||||
| 4 | 316084406 | Panel-drawer, Almond |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 3131455 | Main Top, Almond |
|
- | |||||
| 17 | 316066900 | Rod-maintop Support |
|
$ 66.31 | |||||
| 18 | 08067746 | Bracket-hinge,main Top Lh |
|
- | |||||
| 18 | 08067747 | Bracket-hinge,main Top Rh |
|
- | |||||
| 19 | 316021203 | Pan Burner (4) |
|
- | |||||
| 20 | 316085201 | Grate, (4) |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *12183 | 5303051818 | Screw, Wave Guide/door Hinge, 8, 18 X 1/2 |
|
- |
