SELECT A DIAGRAM

01 - Cover


02 - Splasher


03 - Control Panel


04 - Burner


05 - Lower Body


06 - Upper Body

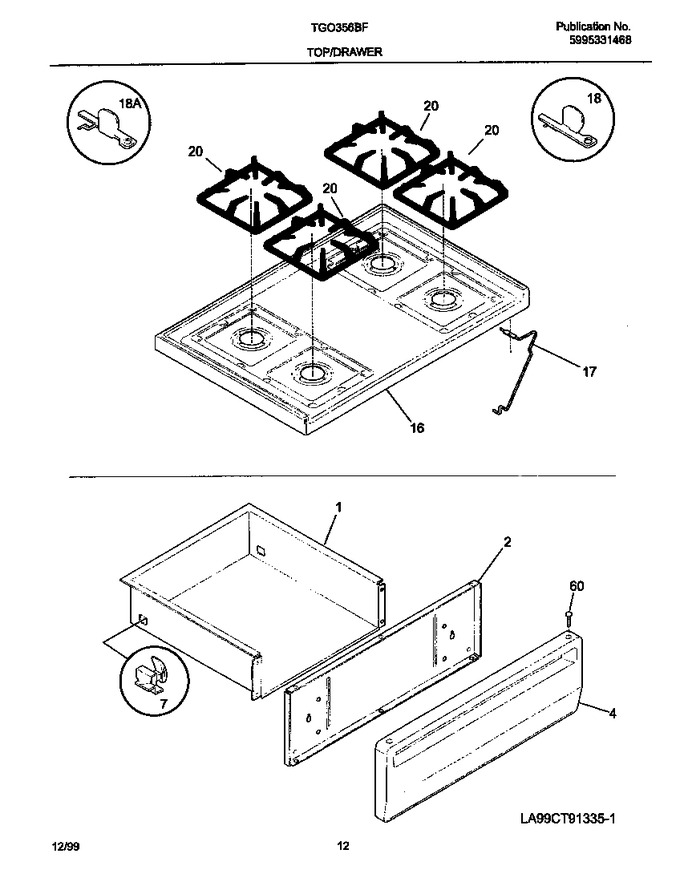

07 - Top/drawer


08 - Lower Door


09 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	3131351		Main Top,white		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
20	316085201		Grate,black ,(4)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*11015	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
