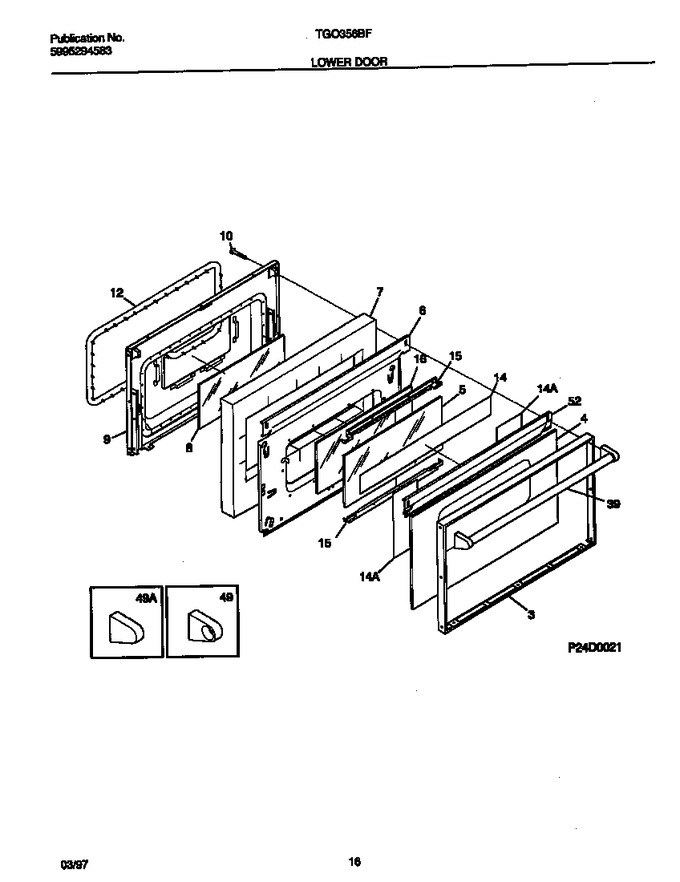

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089000		Glass-oven Door, Outer		Appelez-nous	-
5	316088700		Glass-oven Door, Inner				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass,oven Door ,inner				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	316001001		Screw-handle Mtg, Wafer Head, 10-24 X 3.375		Appelez-nous	-
12	5303131601		Seal-oven Door				$ 374.63
14	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	316081401		Bracket-glass Mtg		Appelez-nous	-
16	316085700		Glass-oven Door, Heat Barrier		Appelez-nous	-
49	5303307192		End Cap-handle, Black, Rh		Appelez-nous	-
49	5303307193		End Cap-handle, Black, Lh		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*10104	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*10105	5303285179		Screw-oven Door, Wafer Head, 8-32t X 1/2, Black				$ 13.46
39A	316008302		Handle-door, Oven		Appelez-nous	-
39B	316089600		Spacer-drawer, (2) (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
