SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit-raea300aax


08 - Shelves & Accessories


09 - Unit Compartment & System


10 - Wiring Information

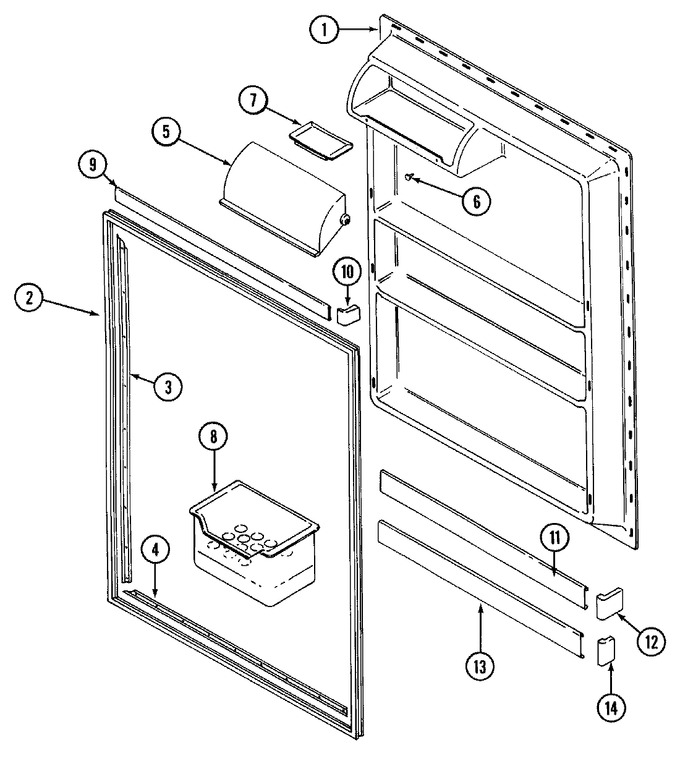

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-5		Screw	10	Appelez-nous	-
1	70345-1		Liner, F.f. Door	10	Appelez-nous	-
2	70025-6		Gasket, F.f. Door (wht)	10			$ 155.30
3	69999-8		Retainer, F.f. Gasket (side)	10	Appelez-nous	-
4	69999-5		Retainer, Gasket (top/bottom)	10	Appelez-nous	-
5	61001195		Door, Dairy----na	10	Appelez-nous	-
6	28272-6		Bumper, Door	10	Appelez-nous	-
7	29936-2		Tray, Butter	10	Appelez-nous	-
8	67215-2		Tray, Egg	10	Appelez-nous	-
9	61001773		Trim, Door Shelf	10	Appelez-nous	-
10	67213-2		Endcap, Shelf Trim (wht)	10			$ 12.64
11	61001774		Trim, Door Shelf	10	Appelez-nous	-
12	67208-3		Endcap, Shelf Trim	10			$ 13.60
13	61001775		Trim, Door Shelf	10	Appelez-nous	-
14	67211-2		Endcap, Shelf Trim	10		Immediately	$ 17.62

    View Diagram in Separate Window       Print Part List
