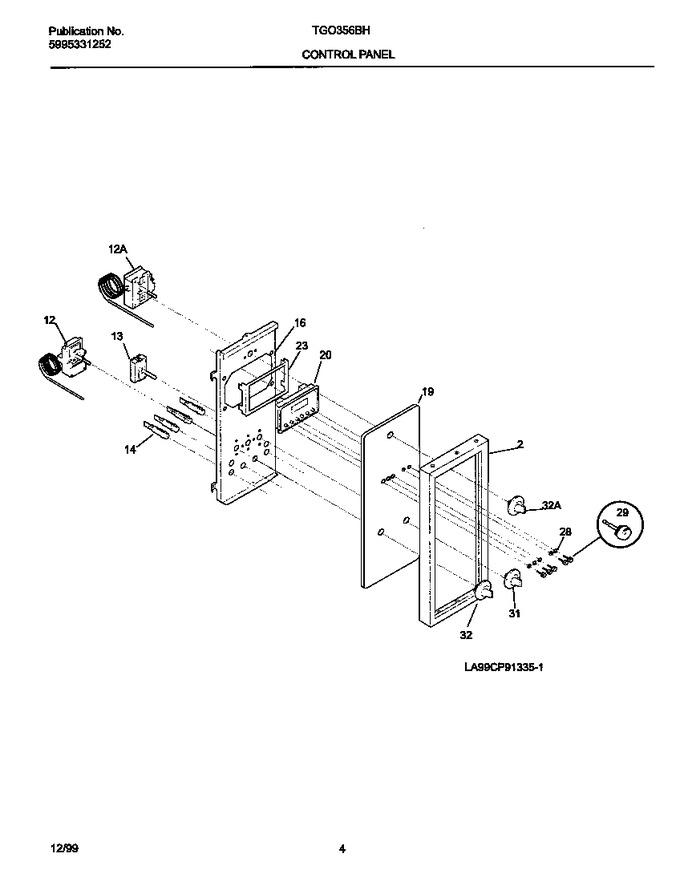

03 - Control Panel


04 - Gas Burner


05 - Lower Body


06 - Upper Body


07 - Top/drawer


08 - Lower Door


09 - Upper Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	316013200		Trim-frame		Appelez-nous	-
12	318059204		Thermostat-oven Upper,upper		Appelez-nous	-
12	5303270076		Thermostat-oven, Lower		Appelez-nous	-
13	5303212678		Switch Selector		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
16	318116703		Plate Instr. Mtg Black,instrument Mtg		Appelez-nous	-
19	318001701		Glass Control Panel		Appelez-nous	-
20	318004600		Clock-timer		Appelez-nous	-
23	318171801		Bracket-timer		Appelez-nous	-
28	318147300		Foam Spacer Neoprene		Appelez-nous	-
29	318036210		Knob Clock Black,temp Control		Appelez-nous	-
31	316019167		Knob-selector		Appelez-nous	-
32	318165301		Knob Thermos.oven Upper,upper Thermost		Appelez-nous	-
32	316019164		Knob-thermostat Lower,lower Oven				$ 105.16
*01801	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
*01802	318083168		Wiring Harness Upper Module		Appelez-nous	-
*01803	316000177		Owner`s Manual		Appelez-nous	-
