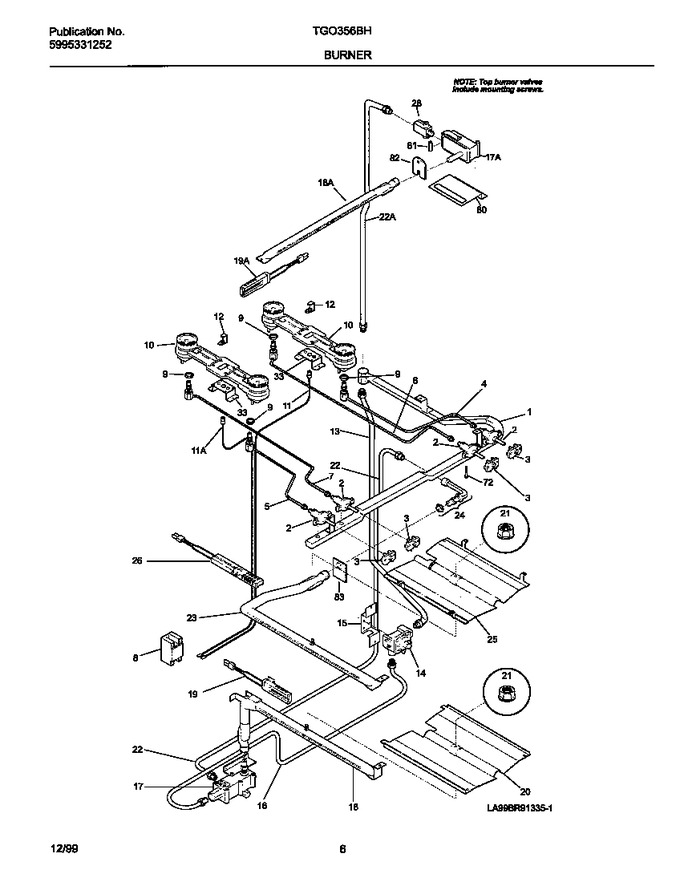

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316113800		Manifold-pipe		Appelez-nous	-
2	316127501		Valve-top Burner		Appelez-nous	-
3	316001812		Harness-ignitor		Appelez-nous	-
4	316051400		Tube-burner, Rf		Appelez-nous	-
5	316051401		Tube-burner, Lf				$ 147.84
6	316051402		Tube-burner, Rr		Appelez-nous	-
7	316051403		Tube-burner, Lr				$ 149.19
8	5303912606		Spark Module				$ 134.67
9	3013279		Nut, Special, 4				$ 2.34
10	316057100		Burner-top Double				$ 110.99
11	316081700		Ignitor-top Burner, 33``		Appelez-nous	-
11	316081701		Ignitor-top Burner, 50``				$ 62.69
12	3016993		Retainer-ignitor		Appelez-nous	-
13	316065005		Tube, Aluminum, Rgltr To Manf, With Fittings				$ 91.51
14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket-regulator				$ 73.56
16	316065003		Tube-valve To Regulator,3/8				$ 126.42
17	3131623		Valve-safety		Appelez-nous	-
17	5303208499		Valve-safety-dual			Immediately	$ 559.67
18	3200502		Burner-oven, Upper		Appelez-nous	-
18	3131290		Burner-oven		Appelez-nous	-
19	5303935066		Ignitor-oven			Immediately	$ 59.58
19	12400035		Ignitor-oven, Upper   (Replaces: 5303200508)			Immediately	$ 60.44
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	318177800		Tubing-mixer,upper		Appelez-nous	-
23	316087900		Burner-broiler		Appelez-nous	-
24	316070400		Mixer Elbow		Appelez-nous	-
25	5303210379		Baffle-broiler				$ 175.88
26	530807970		Ingnitor		Appelez-nous	-
83	316113400		Spacer-broil Elbow		Appelez-nous	-
22A	316065002		Tube-valve To Mixer				$ 80.90
22B	316065000		Tubing-valve		Appelez-nous	-
