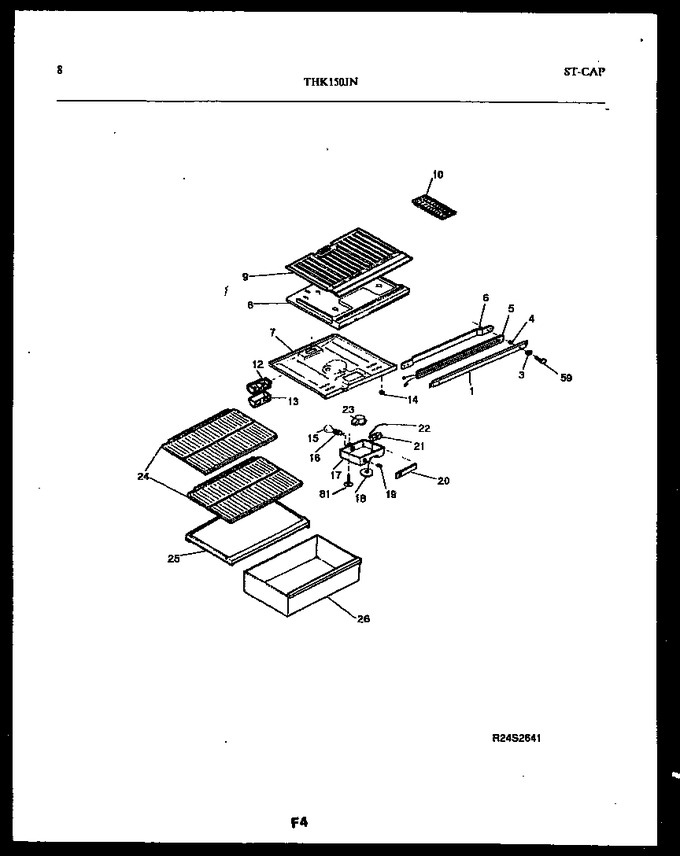

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916134		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5308017408		Heater-mullion		Appelez-nous	-
6	5308003604		Strap, Mullion Mtg		Appelez-nous	-
7	5303212518		Bushing, Snap-in, Plastic (non-illustrated)		Appelez-nous	-
7	5303015448		Top Panel-refr, W/ Snap Bushing		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
8	5308000759		Divider, Styrofoam		Appelez-nous	-
9	5308000748		Bottom Panel, Frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
12	5308000071		Deflector-air		Appelez-nous	-
13	5303001546		Cover - Air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
17	5303015152		Box-control		Appelez-nous	-
17	3202734		Plug-button, Control Box (non-illustrated)		Appelez-nous	-
17	08016567		Nut-anchor, Control Box Mtg (non-illustrated)		Appelez-nous	-
18	5308010011		Knob-temp Control		Appelez-nous	-
19	5303001670		Switch-energy Saver		Appelez-nous	-
20	5303273206		Label-control Box		Appelez-nous	-
21	5303001260		Screw				$ 6.73
21	5308015762		Control, Temperature		Appelez-nous	-
22	5303916855		Sleeve-plastic Tube				$ 60.96
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	5303283297		Stop Clip-shelf (non-illustrated)		Appelez-nous	-
24	5303283042		Shelf-sliding, Refr, (2)		Appelez-nous	-
25	5308000749		Cover-crisper Pan		Appelez-nous	-
26	5303274014		Pan-crisper, Full-width		Appelez-nous	-
59	5308012258		Screw				$ 2.25
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
