SELECT A DIAGRAM

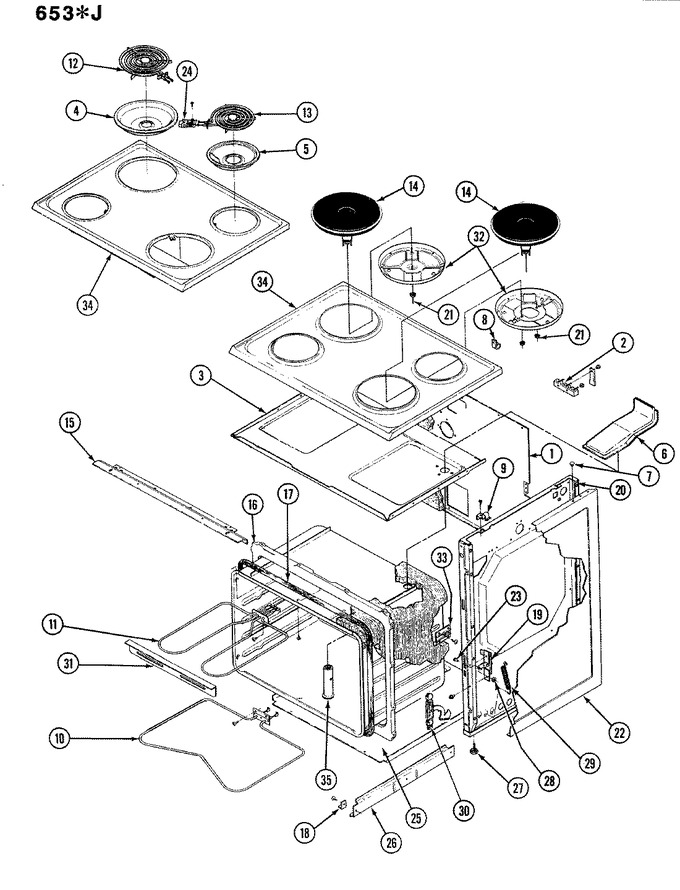

01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F103-80 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 4011F128-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 6 | 3802F046-80 | Brace, Main Top | 1 |
|
- | ||||
| 6 | 3802F077-51 | Brace,inner Side | 1 |
|
- | ||||
| 6 | 3801F100-51 | Bracket | 1 |
|
- | ||||
| 6 | 4006W056-45 | Box Assy, Vent | 1 |
|
- | ||||
| 7 | 8010P048-60 | Spacer, Main Top | 1 |
|
- | ||||
| 8 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 8 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 9 | 4005F288-51 | Cover,access | 1 |
|
- | ||||
| 9 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 9 | 4005F005-45 | Cover | 1 |
|
- | ||||
| 9 | 4005F282-51 | Cover, Flue Box | 1 |
|
- | ||||
| 10 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 11 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 15 | 4012F007-80 | Frame, Burner Box | 1 |
|
- | ||||
| 16 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 17 | 7201P036-60 | Gasket, Oven | 1 |
|
$ 118.90 | ||||
| 18 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 19 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 19 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 19 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 19 | 4001F051-51 | Housing,main Wire | 1 |
|
- | ||||
| 20 | 4009W029-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 21 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 21 | 7103P074-60 | Nut, Surface Element | 1 |
|
- | ||||
| 22 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 22 | 2618F052-71 | Panel, Side (wht) | 1 |
|
- | ||||
| 23 | 3605F156-51 | Plate,conduit | 1 |
|
- | ||||
| 23 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 23 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 23 | 3605F146-51 | Plate, Conduit Reinforcement | 1 |
|
$ 6.06 | ||||
| 25 | 3804F093-80 | Retainer, Bottom Ins. | 1 |
|
- | ||||
| 25 | 3804F010-50 | Retainer | 1 |
|
- | ||||
| 26 | 3406F025-51 | Runner,outer | 1 |
|
- | ||||
| 26 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 1 |
|
Immediately | $ 6.85 | |||
| 27 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 28 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 29 | WP7803P058-60 | Spring, Ov Dr (Replaces: 7803P055-60) | 1 |
|
$ 16.55 | ||||
| 30 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 31 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 32 | 8004P012-60 | Support, 8`` | 1 |
|
- | ||||
| 32 | 8004P011-60 | Support, 6`` | 1 |
|
- | ||||
| 33 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 34 | 2002W032-84 | Top Assy, Main Almond | 1 |
|
- | ||||
| 35 | 8112P017-60 | Manual, Use & Care | 1 |
|
- |
