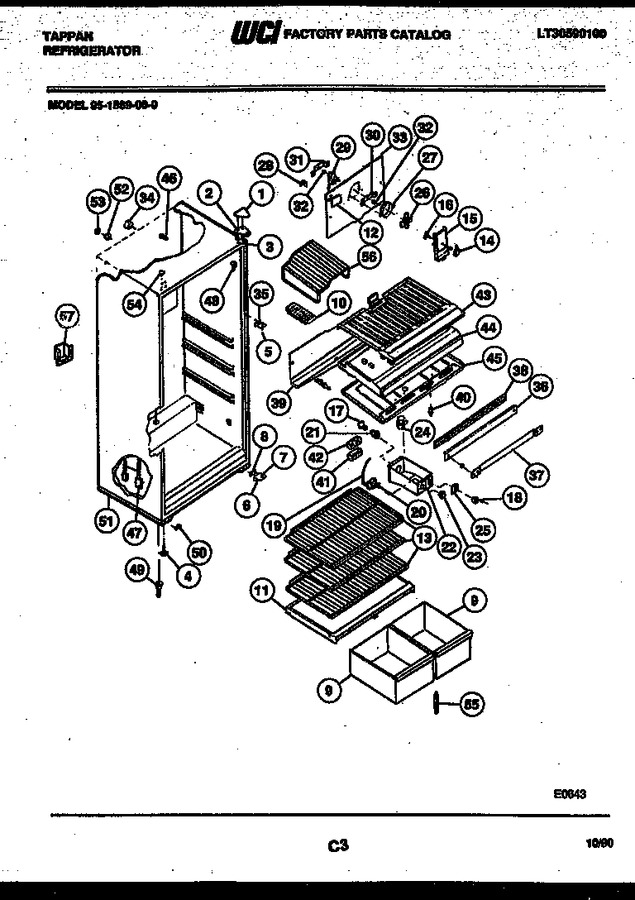

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001666		Cover - Hinge-coffee		Appelez-nous	-
2	5308012843		Hinge-top				$ 71.47
3	5303001037		Shim, Top Hinge				$ 12.39
4	5303205540		Leveling Leg (2)		Appelez-nous	-
5	5308000184		Pin-center Hinge				$ 8.87
6	5308010251		Hinge-bracket Bottom		Appelez-nous	-
7	5303001321		Pin, Bottom Hinge				$ 17.25
8	5303001323		Shim, Bottom Hinge		Appelez-nous	-
9	5303001325		Pan-storage (2)		Appelez-nous	-
10	5303001324		Ice Tray (2)		Appelez-nous	-
11	5316295701		Cover-pan		Appelez-nous	-
12	3001328		Plug-decorative		Appelez-nous	-
13	5317217202		Shelf-sliding (3)		Appelez-nous	-
14	3001452		Knob-damper		Appelez-nous	-
15	5303001334		Cover-fan		Appelez-nous	-
16	5303001331		Damper				$ 31.71
17	5303001179		Light Bulb		Appelez-nous	-
18	3001335		Knob, Control		Appelez-nous	-
19	5308037932		Tube-plastic		Appelez-nous	-
20	5308015762		Control, Temperature		Appelez-nous	-
21	5308000129		Light Socket				$ 62.16
22	3001454		Control Box		Appelez-nous	-
23	5303001670		Slide Switch		Appelez-nous	-
24	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
25	5303001339		Label Cont Box		Appelez-nous	-
26	5308000010		Fan Blade			Immediately	$ 49.03
27	5308000124		Ring, Orifice				$ 53.58
28	5308000107		Bracket-connector				$ 33.23
29	5300158289		Motor, Fan			Immediately	$ 149.94
30	5303001226		Bracket-front		Appelez-nous	-
31	5303205119		Bracket, Rear		Appelez-nous	-
32	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
33	3001358		Cover - Evap Coil		Appelez-nous	-
34	5303001198		Tube, Rubber (2)		Appelez-nous	-
35	5303001369		Hinge-bracket Center		Appelez-nous	-
36	3916133		Mullion, Coffee		Appelez-nous	-
37	5308003604		Strap Mullion		Appelez-nous	-
38	5308017408		Heater-mullion		Appelez-nous	-
39	08003638		Trough-drain		Appelez-nous	-
40	5309918806		Light Switch			Immediately	$ 21.97
41	5303001546		Cover, Deflector		Appelez-nous	-
42	5308000071		Deflector-air		Appelez-nous	-
43	5308000748		Freezer Bottom		Appelez-nous	-
44	5308000759		Divider		Appelez-nous	-
45	5303015448		Refrigerator Top		Appelez-nous	-
46	5308000097		Support-coil Cover		Appelez-nous	-
47	3001383		Harness-wiring		Appelez-nous	-
48	08003615		Corner Trim-coffee		Appelez-nous	-
49	5303001386		Tube - Drain		Appelez-nous	-
50	5303001478		Plug, Hinge Hole		Appelez-nous	-
51	5303006086		Cabinet Base		Appelez-nous	-
52	5303001286		Ferrule-inner		Appelez-nous	-
53	5303001287		Ferrule-outer		Appelez-nous	-
54	5303001679		Plug - Hinge - Coffee		Appelez-nous	-
55	5303205987		Support-cover				$ 48.41
56	3001330		Shelf Freezer		Appelez-nous	-
57	5303001197		Cover-wiring		Appelez-nous	-
*39403	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*39403	5308016571		Plug, Freezer Liner (3)				$ 4.79
12A	5303208309		Plug-short Test Hole (non-illustrated)				$ 45.50
16A	5303001028		Push-nut		Appelez-nous	-
20A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
22A	3001260		Screw-mounting (non-illustrated)		Appelez-nous	-
28A	5303210353		Screw-mounting (non-illustrated)		Appelez-nous	-
2A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
2B	5308000007		Washer-nylon (3) (non-illustrated)		Appelez-nous	-
33A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
35A	5308012258		Screw				$ 2.25
35B	5308003607		Washer Steel (4) (non-illustrated)				$ 1.00
36A	3001370		Spacer Mullion (2) (non-illustrated)		Appelez-nous	-
45A	5303001380		Screw		Appelez-nous	-
4A	5308003584		Anchor Nut (2) (non-illustrated)				$ 7.30
5A	5303001038		Washer-nylon (2) (non-illustrated)				$ 13.34
6A	5303001320		Screw-mounting (2) (non-illustrated)		Appelez-nous	-
8A	3007090		Plate-tapping (2) (non-illustrated)		Appelez-nous	-
