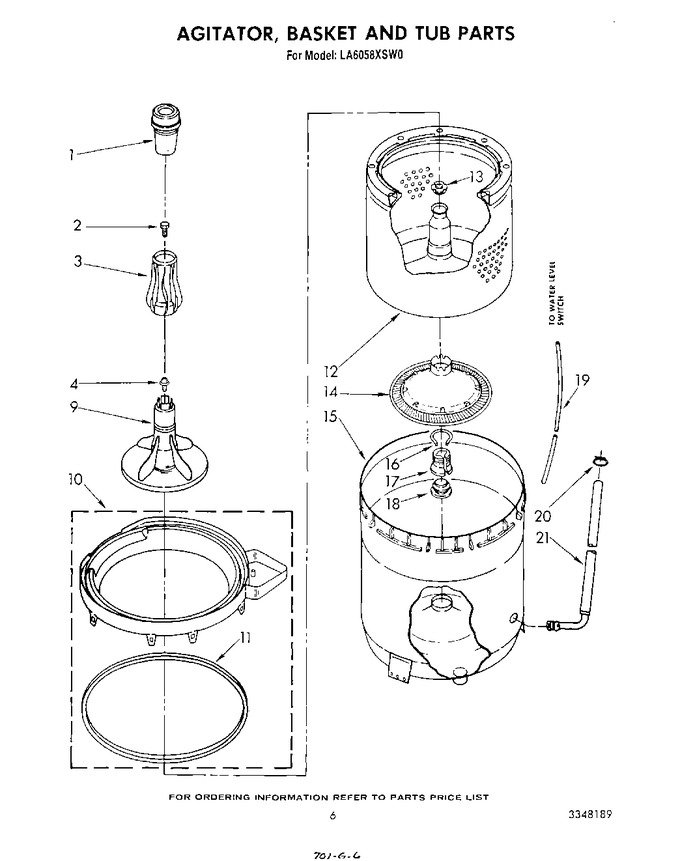

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3355758 | Cap, Agitator (Replaces: 63911) |
|
Immediately | $ 8.10 | ||||
| 2 | WPW10109200 | Screw, Mounting (Replaces: 63027) |
|
Immediately | $ 7.20 | ||||
| 3 | 64210 | Filter, Barrel |
|
$ 84.05 | |||||
| 4 | WP358237 | Screw & Washer (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 9 | 64214 | Agitator |
|
$ 68.42 | |||||
| 10 | W10880720 | Tub Ring (Replaces: 63851) |
|
Immediately | $ 200.01 | ||||
| 11 | WP3976308 | Gasket, Tub Ring (Replaces: 63852) |
|
Immediately | $ 25.43 | ||||
| 12 | W10389328 | Basket (Replaces: 64217) |
|
$ 364.12 | |||||
| 13 | WP21366 | Spanner Nut (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 14 | 285868 | Filter, Plate (includes Illus. 16) (Replaces: 62941) |
|
Immediately | $ 19.51 | ||||
| 15 | 3361596 | Tub (Replaces: 388893) |
|
$ 275.91 | |||||
| 16 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 17 | WP389140 | Block, Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 386757) |
|
Immediately | $ 53.94 | ||||
| 20 | WP596669 | Clamp, Hose (Replaces: 356436) |
|
Immediately | $ 7.56 | ||||
| 21 | 63323 | Hose, Bleach |
|
$ 60.00 |
