SELECT A DIAGRAM
01 - Body

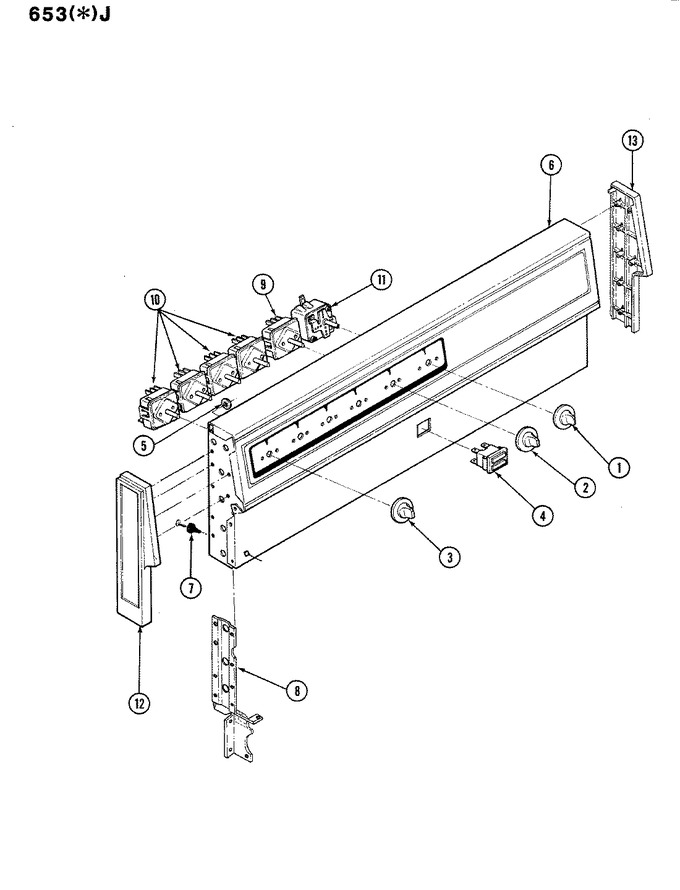

02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F295-51 | Cover, Upper Flue Box | 1 |
|
- | ||||
| 1 | 7711P386-60 | Knob, Thermostat | 1 |
|
- | ||||
| 2 | 7711P385-60 | Knob, Selector | 1 |
|
- | ||||
| 3 | 7711P384-60 | Knob, Switch | 1 |
|
- | ||||
| 4 | 7407P011-60 | Light, Indicator | 1 |
|
- | ||||
| 5 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 6 | 2601W188-81 | Panel, Bkgd White | 1 |
|
- | ||||
| 6 | 7212P032-60 | Seal, Cover | 1 |
|
- | ||||
| 6 | 2601W188-84 | Panel, Bkgd Almond | 1 |
|
- | ||||
| 7 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 8 | 3807F349-51 | Support, Bkgd End Rt | 1 |
|
- | ||||
| 8 | 3807F348-51 | Support, Bkgd End Lf | 1 |
|
- | ||||
| 9 | 7403P031-60 | Switch, Selector | 1 |
|
- | ||||
| 10 | W11122006 | Switch, Inf. 250v (Replaces: 7403P181-60) | 1 |
|
$ 145.12 | ||||
| 11 | 7404P029-60 | Thermostat | 1 |
|
- | ||||
| 11 | 7703P160-60 | Trim, Backguard | 1 |
|
- | ||||
| 12 | 7726P009-60 | End Cap, Backguard (lt-blk) | 1 |
|
- | ||||
| 13 | 7726P020-60 | End Cap, Backguard (rt-blk) | 1 |
|
- |
