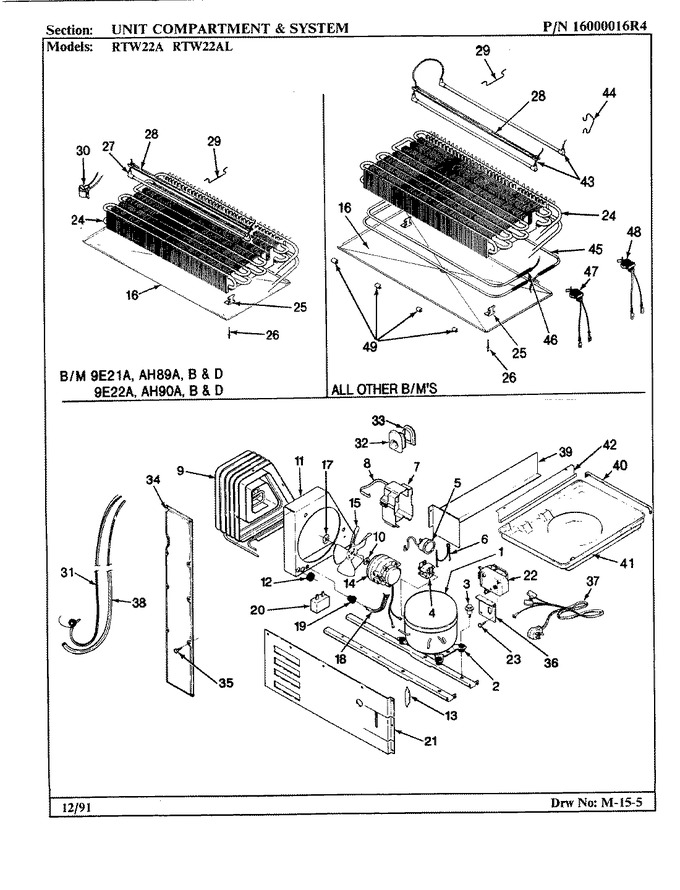

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439652 | Compressor (Replaces: RA1016) | - |
|
$ 379.03 | ||||
| 2 | 17245-4 | Grommet, Compressor | - |
|
- | ||||
| 3 | 65275-9 | Screw, Compressor Mounting | - |
|
- | ||||
| 4 | 2154436 | Relay, Start (Replaces: 66588-1) | - |
|
$ 121.45 | ||||
| 5 | 63294-10 | Overload | - |
|
- | ||||
| 6 | 65887-1 | Clip, Overload | - |
|
- | ||||
| 7 | 66589-2 | Cover, Terminal | - |
|
- | ||||
| 8 | 65886-1 | Clip, Terminal Cover | - |
|
- | ||||
| 9 | 60408-2 | U-nut, Condenser | - |
|
- | ||||
| 9 | RA43871-1 | Condenser | - |
|
- | ||||
| 9 | 414001-1 | Screw | - |
|
- | ||||
| 10 | 19913-4 | Washer | - |
|
- | ||||
| 11 | 66228-1 | Shroud, Condenser | - |
|
- | ||||
| 12 | 53351-1 | Grommet, Condenser Tubing | - |
|
- | ||||
| 13 | WPW10143759 | Drier (Replaces: 13900) | - |
|
Immediately | $ 27.70 | |||
| 14 | 833697 | Motor, Condenser Fan (Replaces: 67560-4) | - |
|
Immediately | $ 79.34 | |||
| 14 | 65275-33 | Screw | - |
|
- | ||||
| 15 | WP12587601 | Blade, Condenser Fan (Replaces: 60683-1) | - |
|
$ 114.00 | ||||
| 16 | 60101-9 | Tray, Drip | - |
|
- | ||||
| 17 | WP486692 | Clip (Replaces: 19914-0) | - |
|
$ 7.04 | ||||
| 18 | 66225-1 | Bracket, Fan Motor | - |
|
- | ||||
| 19 | 56933-1 | Grommet, Bracket | - |
|
- | ||||
| 20 | WPW10662129 | Capacitor, Run (Replaces: 65889-2) | - |
|
Immediately | $ 52.97 | |||
| 20 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 21 | WP488729 | Screw (Replaces: 65275-49) | - |
|
Immediately | $ 7.01 | |||
| 21 | 67785-3 | Cover, Unit Compartment | - |
|
- | ||||
| 22 | WP68233-2 | Timer, Defrost (Replaces: 66556-8) | - |
|
$ 179.56 | ||||
| 23 | 405007-1 | Screw | - |
|
- | ||||
| 24 | RA43620-12 | Evaporator | - |
|
- | ||||
| 25 | 60108-1 | Bracket, Coil To Tray | - |
|
- | ||||
| 26 | WP210720 | Rivet (Replaces: 26397-9) | - |
|
$ 12.14 | ||||
| 27 | 60106-36 | Heater, Defrost | - |
|
$ 86.58 | ||||
| 28 | 69021-3 | Shield, Heater | - |
|
- | ||||
| 29 | 60263-1 | Clip, Defrost Heater | - |
|
- | ||||
| 30 | WP52085-28 | Thermostat, Defrost (Replaces: 52085-24) | - |
|
$ 107.65 | ||||
| 31 | WP2205813 | Wire Tie (Replaces: 66223-1) | - |
|
$ 6.95 | ||||
| 31 | RA43645-14 | Heat Exchanger | - |
|
- | ||||
| 32 | 60068-1 | Grommet, Tube Entry | - |
|
- | ||||
| 33 | 67790-1 | Wire Harness | - |
|
- | ||||
| 33 | 67356-1 | Wire Harness | - |
|
- | ||||
| 34 | 60110-2 | Cover, Wire Harness | - |
|
- | ||||
| 35 | WP489069 | Screw (Replaces: 65275-50) | - |
|
Immediately | $ 7.07 | |||
| 36 | 67824-1 | Wire Harness | - |
|
- | ||||
| 36 | 67863-1 | Wire Harness Timer | - |
|
- | ||||
| 37 | 52890-3 | Cord, Power | - |
|
- | ||||
| 38 | 65398-1 | Cover, Heat Exchanger | - |
|
- | ||||
| 39 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 39 | 66493-3 | Baffle | - |
|
- | ||||
| 40 | 67596-1 | Support | - |
|
- | ||||
| 41 | 68236-2 | Pan, Drain | - |
|
- | ||||
| 42 | WP489478 | Screw (Replaces: 400017-1) | - |
|
$ 6.98 | ||||
| 42 | 60555-2 | Rail, Drain Pan (lt) | - |
|
- | ||||
| 42 | 60555-1 | Rail, Drain Pan (rt) | - |
|
- | ||||
| 49 | 104590-1 | Manual, Use & Care | - |
|
- |
