SELECT A DIAGRAM

02 - Door Parts

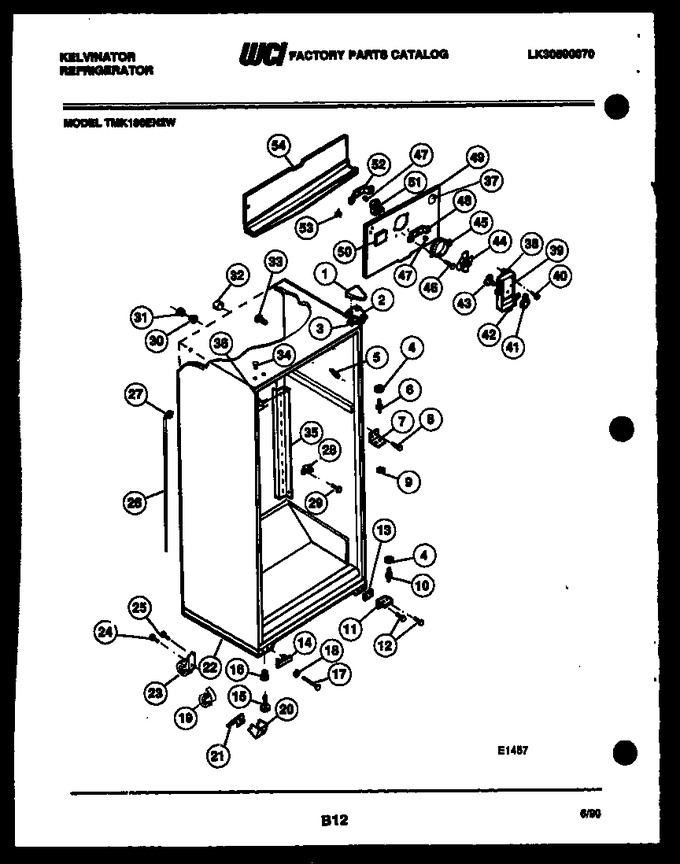

03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308012820		Hinge Cover, White		Appelez-nous	-
2	5308012843		Hinge-top				$ 71.47
3	5303001037		Shim, Top Hinge				$ 12.39
4	5308000007		Washer, 1/4 Nylon (2)		Appelez-nous	-
5	5303202336		Corner-trim (white)		Appelez-nous	-
6	5308000184		Pin-center Hinge				$ 8.87
7	5303001369		Bracket- Center Hinge		Appelez-nous	-
8	5308012258		Screw				$ 2.25
9	5308000186		Washer, Nylon			Immediately	$ 6.02
10	5303001321		Pin, Bottom Hinge				$ 17.25
11	5303202834		Bracket, Bottom Hinge				$ 89.41
12	5303001320		Screw-hinge Mtg (2)		Appelez-nous	-
13	5303001323		Shim, Bottom Hinge		Appelez-nous	-
14	5303001478		Plug, Hinge Hole		Appelez-nous	-
15	5303205540		Leveling Screw (2)		Appelez-nous	-
16	5308003584		Anchor Nut (2)				$ 7.30
17	5308009761		Screw-roller Adj (2)				$ 18.61
18	5308011326		Washer-nylon (2)				$ 9.87
19	5308009760		Roller, Front (2)		Appelez-nous	-
20	5308013678		Support (2)		Appelez-nous	-
21	5308009790		Spring, Roller Adj (2)				$ 4.30
22	5308010092		Cabinet Base		Appelez-nous	-
23	5308009773		Roller-rear (2)		Appelez-nous	-
24	5308009762		Bolt-1/4-28 X 1/2 (2)		Appelez-nous	-
25	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
26	5303210377		Drain Tube-defrost-w/seal Ring				$ 109.31
27	5303207353		Seal Ring				$ 6.81
28	530800056		Drain Spout		Appelez-nous	-
29	5303001361		Pushpin (2)		Appelez-nous	-
30	5303001286		Ferrule-inner		Appelez-nous	-
31	5303001287		Ferrule-outer		Appelez-nous	-
32	5303001198		Tube, Rubber (2)		Appelez-nous	-
33	5308000097		Support, Coil Cover (2)		Appelez-nous	-
34	5303001388		Plug, White				$ 2.60
35	5308000302		Channel, Rh & Lh		Appelez-nous	-
36	5308010253		Screw-side Channels (6)		Appelez-nous	-
37	5303208309		Plug, Short Test Hole				$ 45.50
38	5316306176		Fan Cover		Appelez-nous	-
39	3015118		Label-fan Cover		Appelez-nous	-
40	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
41	5316274722		Knob-damper Control		Appelez-nous	-
42	5303001028		Push-nut		Appelez-nous	-
43	5303001331		Damper				$ 31.71
44	5308000010		Fan Blade			Immediately	$ 49.03
45	5308000124		Orifice Ring				$ 53.58
46	218843801		Screw   (Replaces: 5303001001)				$ 14.41
47	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
48	5303001226		Bracket-front		Appelez-nous	-
49	5308009771		Cover-evap Coil		Appelez-nous	-
50	5308013636		Plug, Decorative		Appelez-nous	-
51	5300158289		Motor, Fan			Immediately	$ 149.94
52	5303001227		Bracket-rear		Appelez-nous	-
53	5308000107		Connector Bracket				$ 33.23
54	5303001470		Drain Trough		Appelez-nous	-
*13724	5308012296		Tapping Plate (4)				$ 47.44
*13724	5308016571		Plug-liner (5)				$ 4.79
26A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
2A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
35A	5303015409		Channel Center		Appelez-nous	-
36A	5308016568		Screw-ctr Chan (3) (non-illustrated)		Appelez-nous	-
49A	3209814		Nut-u Type (2) (non-illustrated)		Appelez-nous	-
49B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
53A	5303210353		Screw-bracket Mtg (non-illustrated)		Appelez-nous	-
8A	5303206754		Washer-no. 10 Steel (non-illustrated)		Appelez-nous	-
8B	5303200464		Spacer-mullion (non-illustrated)		Appelez-nous	-
