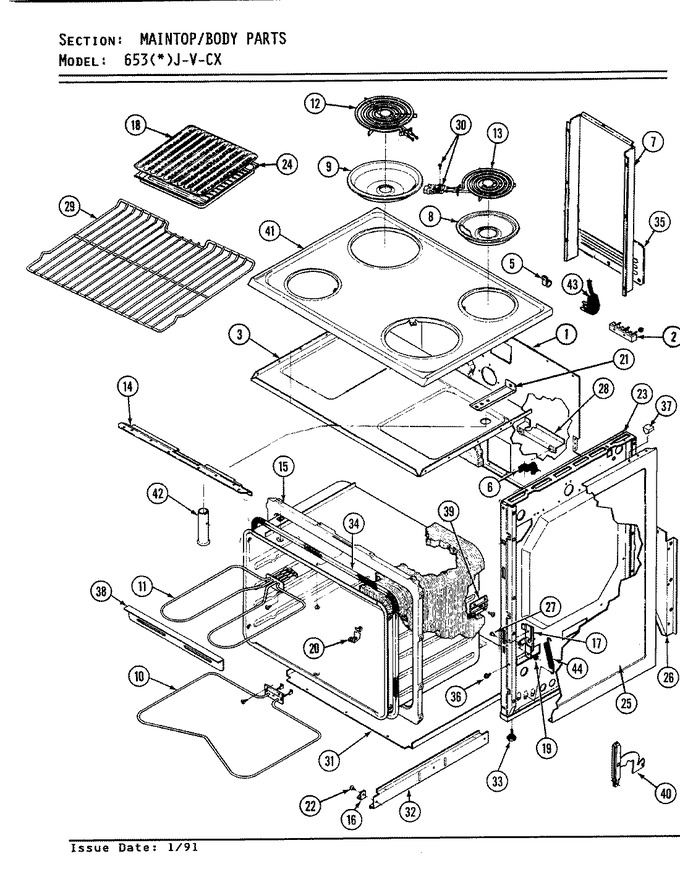

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door/drawer
03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F108-80 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 4011F128-23 | Bottom, Burner Box | 1 |
|
- | ||||
| 4 | 3802F076-51 | Brace, Inner Side | 1 |
|
- | ||||
| 5 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 6 | 7112P073-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 7 | 4001F051-51 | Housing,main Wire | 1 |
|
- | ||||
| 7 | 4005F005-45 | Cover | 1 |
|
- | ||||
| 8 | WPW10196406 | Bowl, Drip (6``)(w/hole-chr) (Replaces: 7725P015-60) | 1 |
|
Immediately | $ 12.05 | |||
| 9 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 1 |
|
Immediately | $ 15.56 | |||
| 10 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 10 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 18 |
|
$ 133.20 | ||||
| 11 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 12 | WPY04000035 | Element (8``) (Replaces: 7406P040-60) | 1 |
|
$ 160.60 | ||||
| 13 | WPY04000036 | Element (6``) (Replaces: 7406P038-60) | 1 |
|
$ 88.70 | ||||
| 14 | 4012F022-80 | Front, Burner Box Bottom | 1 |
|
- | ||||
| 15 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 16 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 17 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 17 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 17 | 8016P008-60 | Glide, Oven Door Hinge | 1 |
|
- | ||||
| 18 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 19 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 20 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 21 | 3801F198-51 | Bracket, Tie-down | 1 |
|
- | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 19 |
|
Immediately | $ 4.69 | |||
| 21 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 19 |
|
$ 26.33 | ||||
| 22 | 7101P013-60 | Screw, Special | 1 |
|
- | ||||
| 23 | 4009W053-80 | Lining, Inner Side | 1 |
|
- | ||||
| 24 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 26 | 3802F008-80 | Brace, Back-left | 1 |
|
- | ||||
| 26 | 3802F010-80 | Brace, Back-right | 1 |
|
- | ||||
| 27 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 28 | 3605F156-51 | Plate,conduit | 1 |
|
- | ||||
| 28 | 3605F146-51 | Plate, Conduit Reinforcement | 1 |
|
$ 6.06 | ||||
| 29 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 30 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 1 |
|
Immediately | $ 28.45 | |||
| 31 | 3804F102-80 | Retainer, Bottom Insulation | 1 |
|
- | ||||
| 32 | 3406F027-51 | Runner, Outer | 1 |
|
- | ||||
| 33 | Y7101P25460 | Leg, Leveling | 1 |
|
- | ||||
| 34 | 7212P002-60 | Seal, Oven | 1 |
|
- | ||||
| 35 | 4005F302-51 | Cover Access | 1 |
|
- | ||||
| 36 | WP4159193 | Screw (Replaces: 7101P112-60) | 1 |
|
$ 4.29 | ||||
| 37 | 8003P011-60 | Spacer, Main Top | 1 |
|
- | ||||
| 38 | 3807F176-15 | Support, Broil Element | 1 |
|
- | ||||
| 39 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 40 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 41 | 3802F029-80 | Brace, Main Top | 1 |
|
- | ||||
| 41 | 2002W028-81 | Top, Main (white) | 1 |
|
- | ||||
| 42 | 8026P003-60 | Tube, Oven Vent | 1 |
|
- | ||||
| 43 | 7402P028-60 | Cord, Power | 1 |
|
- | ||||
| 44 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 1 |
|
$ 16.55 |
