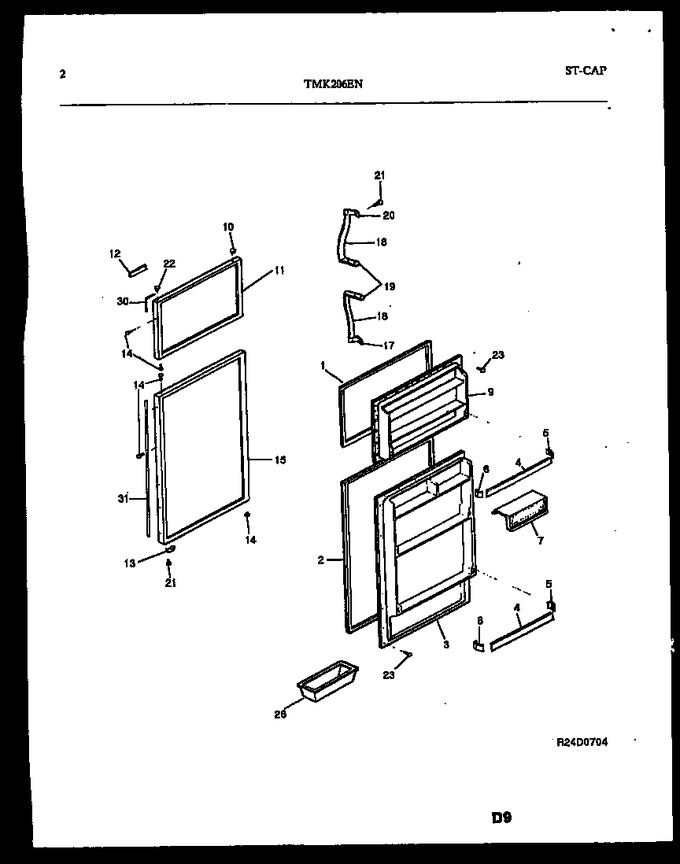

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Support
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016617 | Gasket-freezer Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 3016520 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3016516 | Rack-door, (4) |
|
- | |||||
| 5 | 5317828701 | Support Door Rack Rh (4) |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support Door Rack Lh (4) |
|
$ 11.48 | |||||
| 7 | 3015049 | Door-dairy (2) |
|
- | |||||
| 9 | 3016517 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916887 | Panel-frzr Door, White |
|
- | |||||
| 12 | 3016912 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916866 | Panel-refr Door, White |
|
- | |||||
| 17 | 5318945101 | Handle, End-bottom |
|
- | |||||
| 18 | 5303015112 | Insert-handle Grip, (2) (non-illustrated) |
|
- | |||||
| 18 | 5303015111 | Grip-handle, (2) |
|
- | |||||
| 19 | 5318945301 | Handle End, (2) |
|
- | |||||
| 20 | 5318945201 | Handle End-top |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 23 | 08002748 | Screw |
|
- | |||||
| 26 | 3015068 | Container-egg |
|
- | |||||
| 30 | 3016181 | Trim-frzr Door |
|
- | |||||
| 31 | 5303272340 | Trim-refr Door, Sides, (2) |
|
- | |||||
| *19437 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| *19437 | 5315340760 | Tape-double Faced, Foam, 60`` Pc, Trim/nameplate |
|
- |
