Diagram # Part Number Description Series Availability Ships Price Add to Cart
31 5303276514 Overload Special Order $ 64.94

32 215012000 Wire-bale Special Order $ 2.63

41 5308000039 Screw Appelez-nous -
43 5303001199 Clamp Special Order $ 65.92

44 240396801 Clamp, Nylon   (Replaces: 5308000133) Special Order $ 19.13

45 5304455651 Screw   (Replaces: 5303001343) Special Order $ 14.41

55 5303289028 Capacitor-run Appelez-nous -
*74288 5300141713 Screw-clamp Mtg, Spcl Hx Wshr Hd, 8-32 X 5/8 Appelez-nous -
*74288 3916557 Hot Tube Repair Kit, Service Special Order $ 360.78


    View Diagram in Separate Window     Print Icon   Print Part List

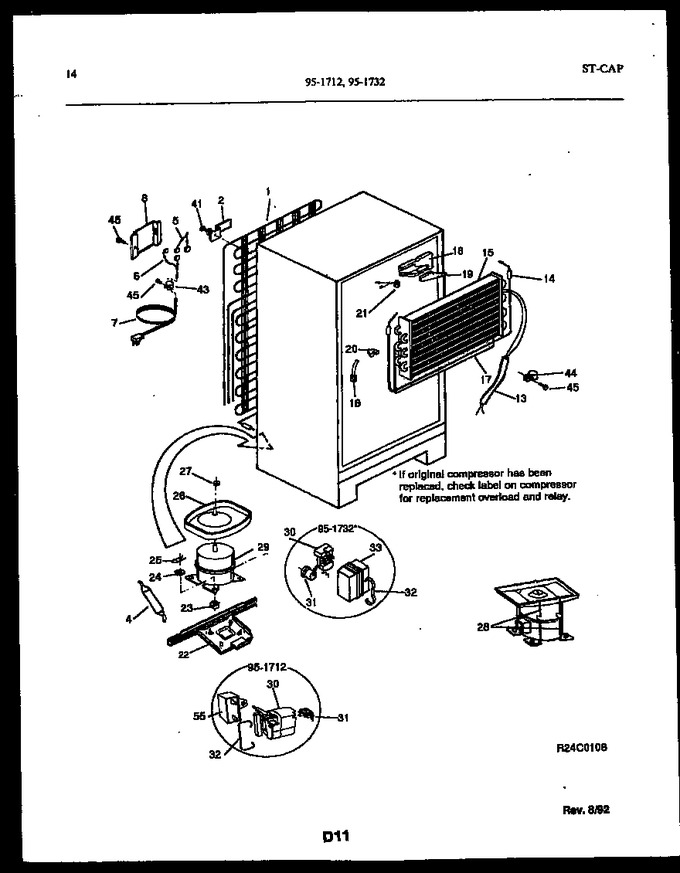

Diagram for 95-1712-00-00
