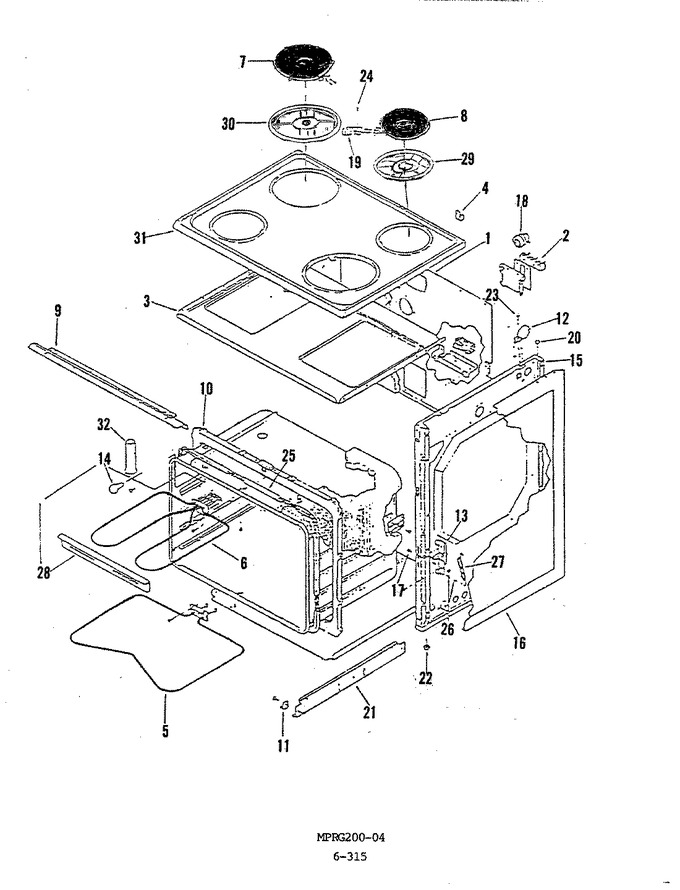

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door\latch Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0903114 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block (Replaces: 1867255) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 3 | 4011F080-23 | Box, Burner | 2 |
|
- | ||||
| 3 | 4011C073 | Bottom, Burner Box | 1 |
|
- | ||||
| 3 | 4006W025-45 | Box, Vent | 1 |
|
- | ||||
| 3 | 0277257 | Brace | 1 |
|
- | ||||
| 3 | 0277238 | Brace | 1 |
|
- | ||||
| 4 | 1140201 | Clamp | 1 |
|
- | ||||
| 4 | 1141237 | Clip | 1 |
|
- | ||||
| 4 | WP7112P004-60 | Clip (Replaces: 1141238) | 1 |
|
Immediately | $ 11.07 | |||
| 4 | 0787407 | Shield, Access | 1 |
|
- | ||||
| 5 | WPY04000041 | Element, Bake (Replaces: 1938357) | 1 |
|
$ 133.20 | ||||
| 6 | WPY04000048 | Element, Broil (Replaces: 1938369) | 1 |
|
$ 160.58 | ||||
| 7 | 7406P024-60 | Element, Solid Disc (8``) | 1 |
|
- | ||||
| 8 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 1 |
|
$ 244.76 | ||||
| 9 | 0462240 | Frame, Burner Box | 1 |
|
- | ||||
| 10 | 2201C014 | Frame, Oven | 1 |
|
- | ||||
| 11 | 8016E005 | Glide, Service Drawer (front) | 1 |
|
- | ||||
| 11 | 1329101 | Glide | 1 |
|
- | ||||
| 12 | 0529104 | + Hinge, Main Top | 1 |
|
- | ||||
| 12 | 0529103 | + Hinge, Main Top | 1 |
|
- | ||||
| 13 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 13 | Y0507229 | Insert | 1 |
|
- | ||||
| 13 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 13 | Y0537241 | Housing | 1 |
|
- | ||||
| 14 | 40A15 | Light, Oven (Replaces: 1077202) | 1 |
|
Immediately | $ 1.98 | |||
| 15 | 4009W029-20 | Lining, Inner Side | 1 |
|
- | ||||
| 15 | 4396923 | Pan, Broiler (Replaces: Y0663202) | 1 |
|
Immediately | $ 52.04 | |||
| 16 | Y0801240A | Panel, Side (alm) | 1 |
|
- | ||||
| 17 | 1636254 | Rack, Oven | 1 |
|
- | ||||
| 17 | 1584204 | Pin, Oven Door Hinge | 1 |
|
- | ||||
| 18 | 1657202 | Receptacle, Oven Light | 1 |
|
- | ||||
| 19 | 12001676 | + Receptacle, Surface Element (Replaces: 1657226) | 1 |
|
Immediately | $ 28.45 | |||
| 20 | 1784202 | Bumper | 1 |
|
- | ||||
| 21 | Y0766215 | Runner | 1 |
|
- | ||||
| 21 | 3406J007 | Runner, Outer | 1 |
|
- | ||||
| 22 | 1986204 | Screw, Special | 1 |
|
- | ||||
| 23 | 1986339 | Screw, Top Hinge | 1 |
|
- | ||||
| 23 | 7101P102-60 | Screw, Inf Switch | 1 |
|
- | ||||
| 24 | WP74004005 | Screw (Replaces: 1986326) | 1 |
|
$ 6.95 | ||||
| 25 | 1726257 | Seal | 1 |
|
- | ||||
| 25 | 0787411 | Shield | 1 |
|
- | ||||
| 26 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 26 | 1013214 | Ring, Snap | 1 |
|
- | ||||
| 27 | WP7803P058-60 | Spring, Oven Door (Replaces: 1790300) | 1 |
|
$ 16.55 | ||||
| 28 | Y0862419 | Support, Broil Element | 1 |
|
- | ||||
| 29 | 8004P011-60 | Support, 6`` | 1 |
|
- | ||||
| 30 | 1860211 | Terminal | 1 |
|
- | ||||
| 30 | 8004P012-60 | Support, 8`` | 1 |
|
- | ||||
| 31 | 2002W026-04 | Top Assy, Main A |
|
- | |||||
| 32 | 8026E005 | Tube, Oven Vent | 1-13 |
|
- | ||||
| 32 | 8026P005-60 | Tube, Oven Vent | 14 |
|
- |
