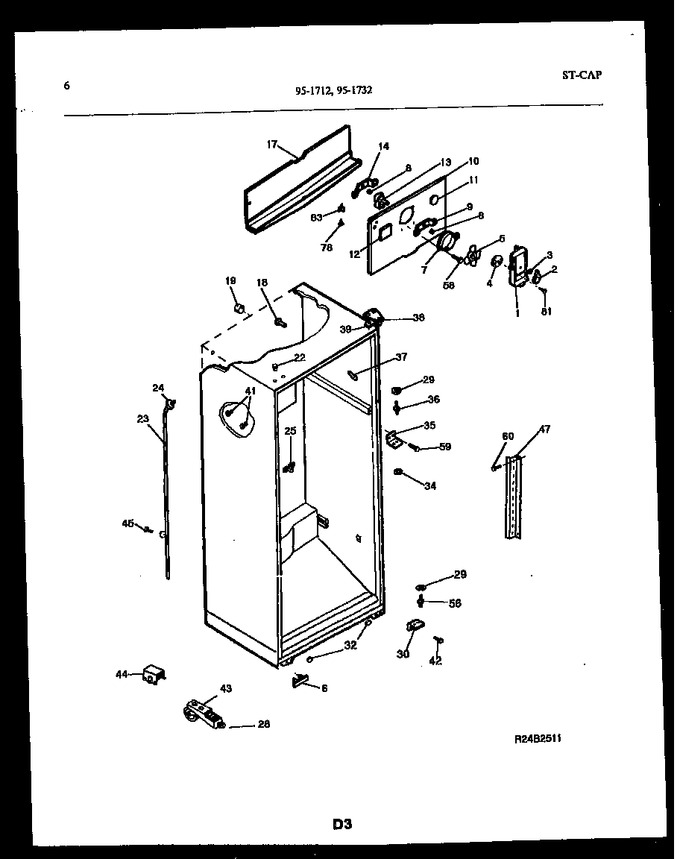

95-1712-23-00 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
36	5308000184	Pin-center Hinge			$ 8.87
37	5303202340	Trim-cabinet Corner, Almond	Appelez-nous	-
38	3206100	Bracket-upper Hinge	Appelez-nous	-
39	5303001037	Shim - Upper Hinge			$ 12.39
42	3206143	Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)	Appelez-nous	-
43	5300188673	Roller Assy-front (2)	Appelez-nous	-
44	5303283014	Roller Assy-rear, Metal Hsg, (2)	Appelez-nous	-
45	5304455651	Screw (Replaces: 5303001343)			$ 14.41
47	3206202	Channel-shelf Mtg, Side, (2)	Appelez-nous	-
56	5303001321	Pin-lower Hinge			$ 17.25
58	5308002748	Screw	Appelez-nous	-
59	3206134	Screw-hinge/mullion, Acorn Hx Wsh Hd, 10-24(23) X 1	Appelez-nous	-
60	5308010253	Screw	Appelez-nous	-
78	5303274237	Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2	Appelez-nous	-
81	5304455650	Screw (Replaces: 5308016566)			$ 14.18
83	5308000107	Bracket-connector			$ 33.23
*74278	5308016571	Plug-button, Liner			$ 4.79
38A	241710601	Screw (Replaces: 5303001479)			$ 13.46
38B	5308012296	Tapping Plate, Upper Hinge, (2) (non-illustrated)			$ 47.44
43A	5308009760	Roller, (2) (non-illustrated)	Appelez-nous	-
43B	5308009790	Spring-roller Adj, (2) (non-illustrated)			$ 4.30
43C	3051070	Screw, Spcl Hx Wshr Hd, 10-32 X 1/2 (non-illustrated)	Appelez-nous	-
