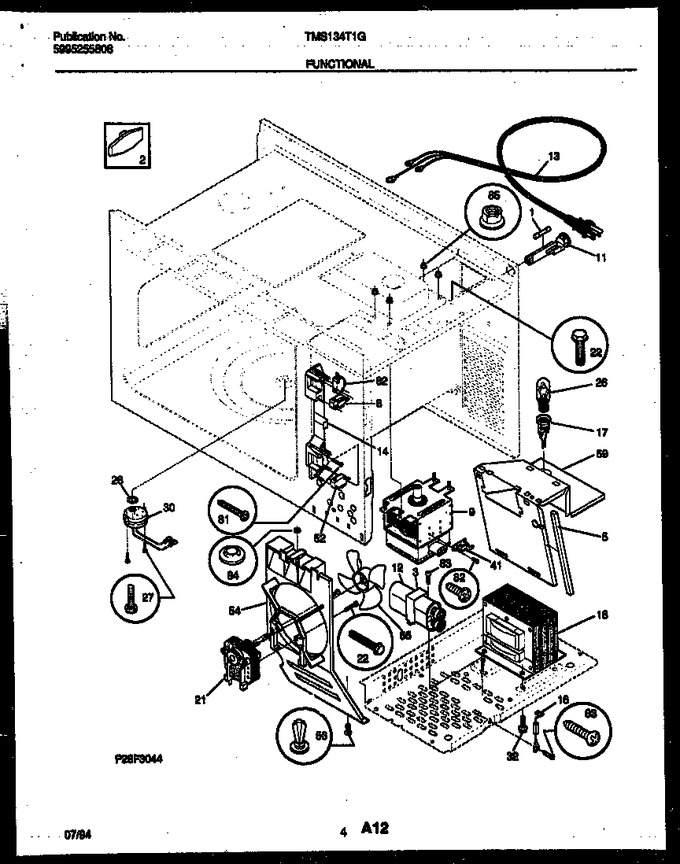

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Door Parts
04 - Functional Parts
05 - Wrapper And Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303011670 | Fuse, 20 Amp, 250 V |
|
- | |||||
| 2 | 5303013626 | Plug-button, Browner, (2) |
|
- | |||||
| 3 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 5 | 5303017864 | Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size |
|
- | |||||
| 8 | 5303203636 | Switch, Interlock |
|
- | |||||
| 9 | 396112000 | Magnetron |
|
- | |||||
| 11 | 5303212769 | Bushing-fuse Holder, Strain Relief |
|
- | |||||
| 12 | 317018702 | Capacitor |
|
- | |||||
| 13 | 317005401 | Cord-electric Power, 120 V |
|
- | |||||
| 14 | 317000703 | Bracket-switch |
|
- | |||||
| 16 | 5303269837 | Harness And Diode, Hv |
|
- | |||||
| 17 | 317018001 | Socket-light/lamp, Oven, 120 V |
|
- | |||||
| 18 | 317016901 | Transformer, 120 V |
|
- | |||||
| 21 | 5303922053 | Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade |
|
- | |||||
| 22 | 317004703 | Screw, Thread Forming, 8-32 X 1/2, Fan Mtr/ground, (2) |
|
- | |||||
| 26 | 317019301 | Lamp, 40 W, 120 V |
|
- | |||||
| 27 | 317009502 | Screw-turntable Mtr, 6-32 X 3/4, (2) |
|
- | |||||
| 28 | 5303292336 | Spacer-turntable Mtr, Place Between, Mtr & Oven Btm |
|
- | |||||
| 30 | 317005503 | Motor-turntable, 120 V |
|
- | |||||
| 32 | 5303013944 | Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2) |
|
- | |||||
| 41 | 317018902 | Switch, Thermal Cutout |
|
$ 100.22 | |||||
| 52 | 317005121 | Switch-door Sensor |
|
- | |||||
| 54 | 5303269833 | Duct-air, Fan |
|
- | |||||
| 55 | 5303269834 | Fan Blade |
|
- | |||||
| 56 | 5303269846 | Rivet, Plastic, Fan Air Duct, (2) |
|
- | |||||
| 59 | 5303286094 | Duct-magnetron |
|
- | |||||
| 62 | 317005120 | Switch-monitor |
|
- | |||||
| 81 | 396122800 | Screw-switch Brkt Mtg, Sems, 8-18(bt) X 12mm, Pozi Flan |
|
- | |||||
| 82 | 317009503 | Screw-thermal Cutout, Ph Pan Taptite, 6-32 X 1/2, (2) |
|
- | |||||
| 83 | 5303273263 | Screw, 8-18 X 1/2, Capacitor, Wrapper & Cover |
|
- | |||||
| 84 | 5303212803 | Nut, Fan Duct |
|
$ 2.10 | |||||
| 85 | 5308008918 | Nut, Hex, Magnetron, (4) |
|
- | |||||
| *10646 | 317000412 | Harness-wiring, Main |
|
- | |||||
| 62A | 317000506 | Harness-wiring, Monitor (non-illustrated) |
|
- |
