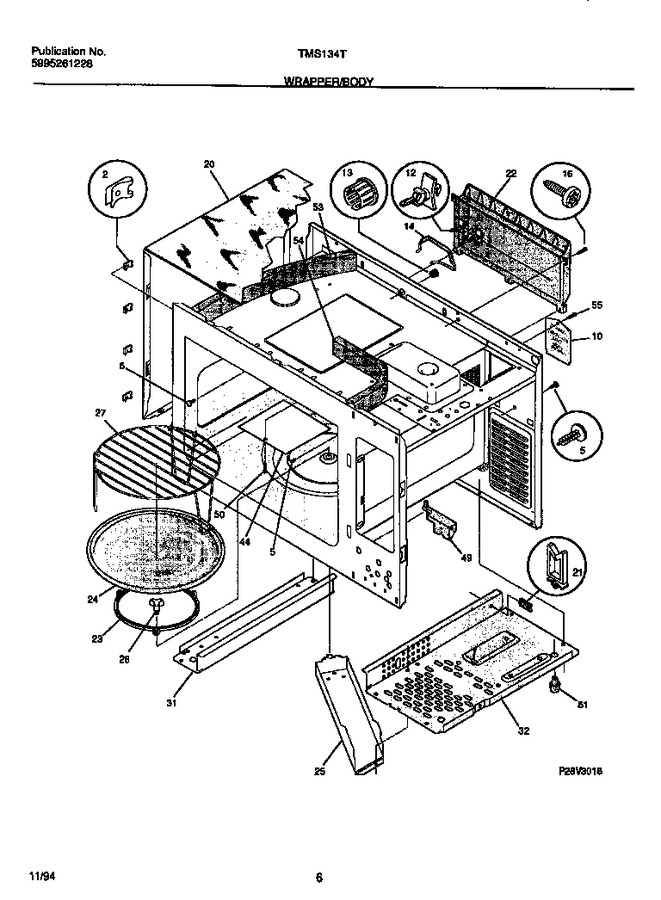

05 - Wrapper/body


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3203010		Clip, Hinge, (4)   (Replaces: 5303012323)				$ 14.89
5	5303091555		Plug-button, White		Appelez-nous	-
10	5303212775		Cover-light		Appelez-nous	-
12	5303212788		Support, Thrm Protector, (2)		Appelez-nous	-
13	5303280263		Bushing		Appelez-nous	-
14	5303305444		Harness-wiring, Fire Protector		Appelez-nous	-
16	394027600		Screw, Tamper Proof, 8-15(a) X 1/2, (2)		Appelez-nous	-
20	5303283483		Wrapper, Woodgrain		Appelez-nous	-
21	317019401		Clip, Wires		Appelez-nous	-
22	5303269958		Duct-air, Exhaust		Appelez-nous	-
23	317012905		Roller Assy		Appelez-nous	-
24	317012801		Tray, Circular, Glass, Oven		Appelez-nous	-
25	317011204		Shield-oven Bottom		Appelez-nous	-
26	317013101		Bushing, Turntable Motor		Appelez-nous	-
27	317018101		Rack-oven		Appelez-nous	-
31	5303011773		Channel Base, Lh		Appelez-nous	-
32	5303305440		Channel, Base, Rh		Appelez-nous	-
44	317013303		Cover, Wave Guide		Appelez-nous	-
49	317017801		Lever, Door		Appelez-nous	-
50	5303051818		Screw, Wave Guide/door Hinge, 8, 18 X 1/2		Appelez-nous	-
51	317005302		Foot, (4)		Appelez-nous	-
53	317009902		Foam-air Flow, Lh		Appelez-nous	-
54	317009909		Foam, Air Flow, Rh		Appelez-nous	-
55	5303273263		Screw, 8-18 X 1/2, Capacitor, Wrapper & Cover		Appelez-nous	-
*28763	317016302		Shield-oven Light		Appelez-nous	-
*28764	5303203124		Paint, Touch Up, White		Appelez-nous	-
