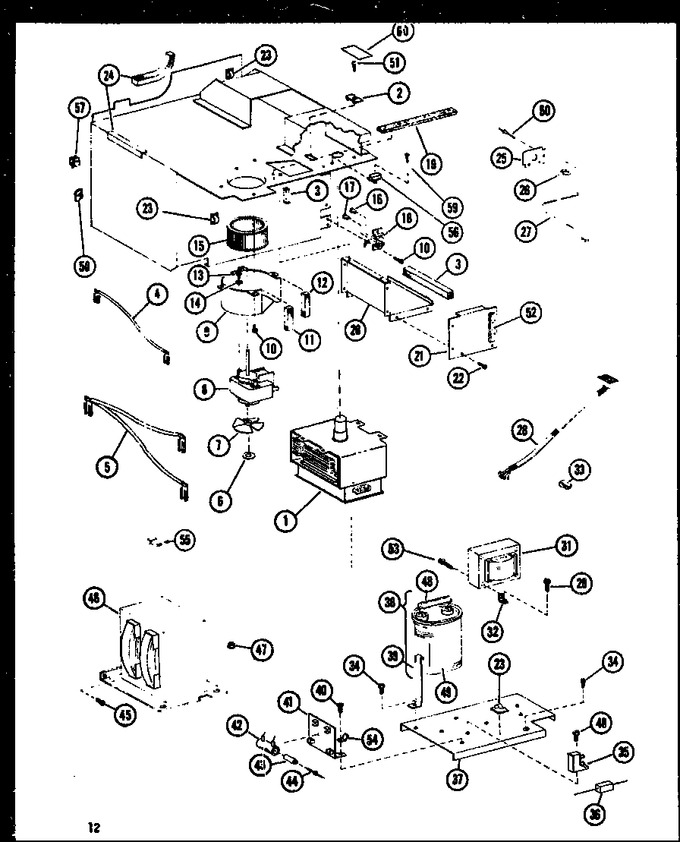

01 - Control Assy
02 - Page 3
03 - Page 4
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8798601 | Kit, Magnetron |
|
- | |||||
| 2 | B5774402 | Brkt-mag Tube |
|
- | |||||
| 3 | A3030311 | Gasket-per Inch |
|
- | |||||
| 4 | D7292630 | Wire, Jumper H.v. Capacitor To |
|
- | |||||
| 4 | D7292627 | Jumper Wire |
|
- | |||||
| 4 | D7292656 | Jumper Wire |
|
- | |||||
| 5 | D7292650 | Jumper Wire |
|
- | |||||
| 6 | M0118901 | Clip |
|
- | |||||
| 7 | B5706702 | Fan Blade-blower |
|
- | |||||
| 8 | C8811601 | Motor Kit |
|
- | |||||
| 9 | C8710705 | Blower Scroll Wld |
|
- | |||||
| 10 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 11 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 12 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 13 | M0202642 | Screw |
|
- | |||||
| 14 | M0272605 | Washer |
|
- | |||||
| 15 | C3670803 | Blower Wheel |
|
- | |||||
| 16 | M0325401 | Bushing,terminal |
|
- | |||||
| 17 | M0325402 | Bushing,terminal |
|
- | |||||
| 18 | A3230601 | Bracket-connector |
|
- | |||||
| 19 | A3030302 | Gasket |
|
- | |||||
| 20 | C8807901 | Plenum Wld |
|
- | |||||
| 21 | A3230302 | Cover-plenum |
|
- | |||||
| 22 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 23 | M0118801 | Clip |
|
- | |||||
| 24 | A3261702 | Grommet Per In. |
|
- | |||||
| 25 | B5722801 | Panel-strain Relief |
|
- | |||||
| 26 | M0371301 | Strain Relief |
|
- | |||||
| 27 | B5674403 | Cord, Power |
|
- | |||||
| 28 | D7474001 | Wire Harness |
|
- | |||||
| 29 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 31 | C8798801 | Trans Filament |
|
- | |||||
| 32 | B5779401 | Brkt-transformer |
|
- | |||||
| 33 | M0325301 | Insulator, Term. K |
|
- | |||||
| 34 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 35 | B5767802 | Kit, Diode |
|
- | |||||
| 36 | M0308502 | Resistor |
|
- | |||||
| 37 | C8714402 | Chassis-pwr Supply |
|
- | |||||
| 38 | R0160027 | Capacitor Assy |
|
- | |||||
| 39 | A3204505 | Strap-capacitor |
|
- | |||||
| 40 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 41 | B5780901 | Terminal Board |
|
- | |||||
| 42 | M0308604 | Resistor |
|
- | |||||
| 43 | M0321701 | Sleeve |
|
- | |||||
| 44 | M0308108 | Fuse |
|
- | |||||
| 45 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 46 | D7374901 | Transformer |
|
- | |||||
| 47 | WP487939 | Nut-keps (Replaces: M0282013) |
|
$ 6.95 | |||||
| 48 | M0305202 | Resistor A |
|
- | |||||
| 49 | C8790510 | Oil-filled Capacitor |
|
- | |||||
| 50 | A4539601 | Pop Rivet |
|
- | |||||
| 51 | M0216531 | Screw |
|
- | |||||
| 52 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 53 | M0218136 | Screw |
|
- | |||||
| 54 | M0320901 | Terminal |
|
- | |||||
| 55 | M0325301 | Insulator, Term. K |
|
- | |||||
| 56 | B5795302 | Thermal Cut Out |
|
- | |||||
| 57 | M0110501 | Clip K |
|
- | |||||
| 58 | M0118801 | Clip |
|
- | |||||
| 59 | M0234114 | Screw |
|
- | |||||
| 60 | M0275012 | Tape-per Roll |
|
- |
