SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door\latch Assy.
New Model Search:

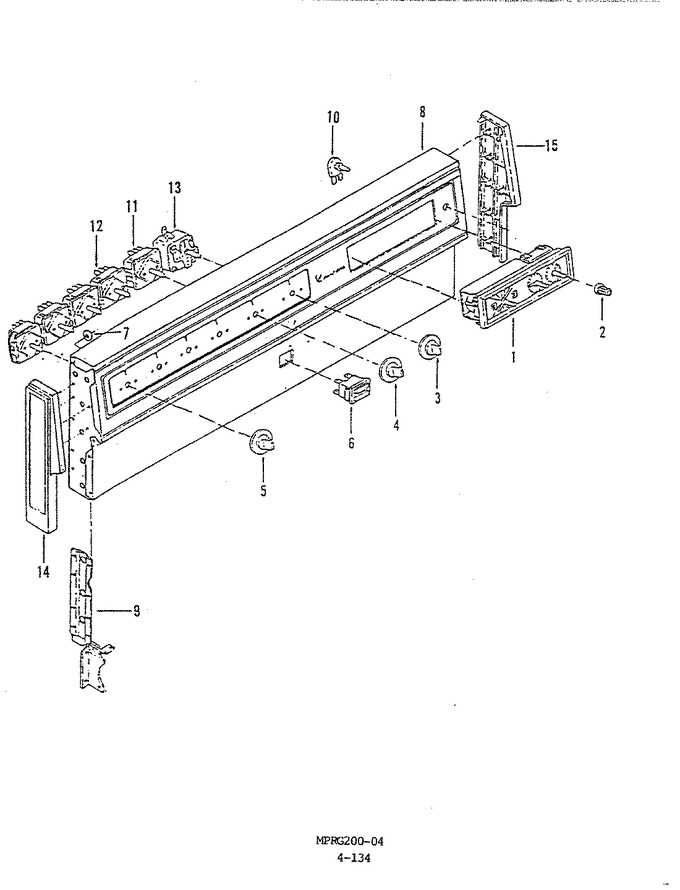

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P038-60 | + Clock, Inter Timer | 1 |
|
- | ||||
| 1 | 1327135 | Glass, Clock | 1 |
|
- | ||||
| 2 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 3 | 1362239 | Knob, Selector | 1 |
|
- | ||||
| 4 | 7711E125 | Knob, Selector | 1 |
|
- | ||||
| 5 | 1362239 | Knob, Selector | 1 |
|
- | ||||
| 6 | 1406251 | Light, Indicator | 1 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 8 | 2601W150-86 | Panel, Bkgd-y | 1 |
|
- | ||||
| 8 | 1605203 | Plug | 1 |
|
- | ||||
| 8 | 2601W150-87 | Panel, Bkgd-g | 1 |
|
- | ||||
| 8 | 2601W150-88 | Panel, Bkgd-b | 1 |
|
- | ||||
| 8 | 2601W150-81 | Panel, Bkgd-n | 1 |
|
- | ||||
| 8 | Y0787432 | Shield, Bkgd Wire | 1 |
|
- | ||||
| 8 | 2601W150-84 | Panel, Bkgd-a | 1 |
|
- | ||||
| 9 | 0862417 | Support | 1 |
|
- | ||||
| 9 | 0862418 | Support | 1 |
|
- | ||||
| 10 | 7403P067-60 | Switch, Rocker (blk) | 1 |
|
$ 91.35 | ||||
| 11 | 1832378 | Switch | 1 |
|
- | ||||
| 12 | W11122006 | Switch, Inf. Control (Replaces: 7403P074-60) | 1 |
|
$ 145.12 | ||||
| 12 | W11122006 | Switch, Surface Element (6``) (Replaces: 7403P070-60) | 1 |
|
$ 145.12 | ||||
| 12 | W11122006 | Switch, Inf. Control (Replaces: 7403P064-60) | 1-4 |
|
$ 145.12 | ||||
| 13 | 7703P131-60 | Trim, Bkgd | 1 |
|
- | ||||
| 13 | 7404P029-60 | Thermostat | 1 |
|
- | ||||
| 14 | 1916187 | Trim | 1 |
|
- | ||||
| 15 | 1916188 | Trim | 1 |
|
- |
