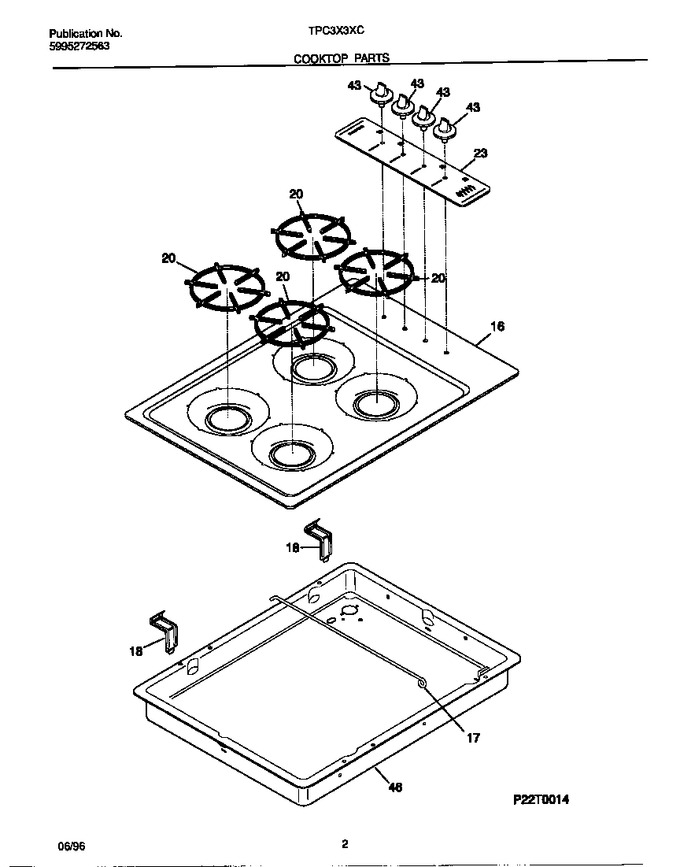

02 - Cooktop Parts
03 - Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5303305547 | Channel-top Stiffener (not Illustrated) |
|
- | |||||
| 16 | 5303311268 | Main Top, White |
|
- | |||||
| 17 | 3016817 | Rod,maintop Support |
|
- | |||||
| 18 | 5303311269 | Hinge-main Top, (2) |
|
- | |||||
| 20 | 316040807 | Grate, (4) |
|
- | |||||
| 23 | 318021204 | Panel-control, Metal |
|
- | |||||
| 43 | 318016206 | Knob-control, (4) |
|
- | |||||
| 46 | 3201436 | Burner Box |
|
- |
