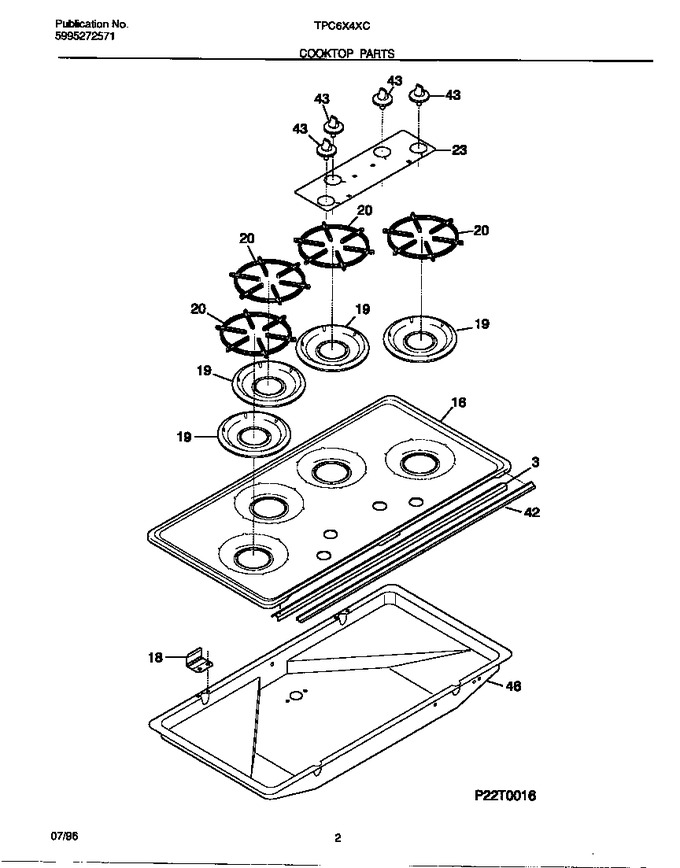

02 - Cooktop Parts
03 - Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303294441 | Support, Main Top |
|
- | |||||
| 16 | 5303305542 | Main Top, Chrome |
|
- | |||||
| 19 | 5303131115 | Pan-burner (4) |
|
$ 15.62 | |||||
| 20 | 316040807 | Grate, (4) |
|
- | |||||
| 23 | 318021101 | Panel-control, Metal, Black |
|
- | |||||
| 42 | 5303311316 | Trim-vent |
|
- | |||||
| 43 | 318016207 | Knob-control, (4) |
|
- | |||||
| 46 | 5303305541 | Burner Box |
|
- | |||||
| 18A | 5303311315 | Hinge-main Top, (2) |
|
- | |||||
| 18B | 3203618 | Rivet-pop, Warning-plate (not Illustrated) |
|
- | |||||
| 18C | 5303311306 | Screw, 8-18 X 3/8 (not Illustrated) |
|
- |
