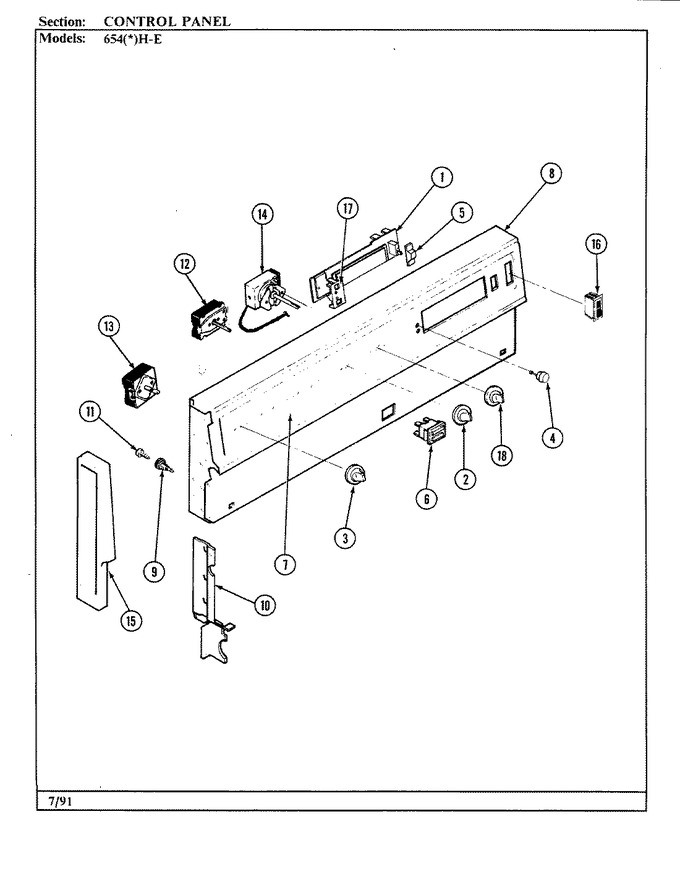

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7602P099-60		Clock	1	Appelez-nous	-
1	7101P293-60		Screw	1	Appelez-nous	-
1	8010P078-60		Spacer, Clock Glass	1	Appelez-nous	-
2	7711P385-60		Knob, Selector	1	Appelez-nous	-
3	7711P384-60		Knob, Switch	1	Appelez-nous	-
4	7711P440-60		Button, Push	1	Appelez-nous	-
5	7711P443-60		Button, Slide	1	Appelez-nous	-
6	7407P068-60		Light, Signal	1	Appelez-nous	-
7	7703P306-60		Trim Backbuard	1	Appelez-nous	-
8	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	1			$ 6.98
8	4005F004-80		Cover, Bkgd Wire	1	Appelez-nous	-
8	2601W319-71		Backguard	1	Appelez-nous	-
9	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
10	3807F349-51		Support, Bkgd End Rt	1	Appelez-nous	-
10	3807F348-51		Support, Bkgd End Lf	1	Appelez-nous	-
10	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
11	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
12	7403P031-60		Switch, Selector	1	Appelez-nous	-
12	7101P280-60		Screw W/washer (blk)	1	Appelez-nous	-
13	7101P280-60		Screw W/washer (blk)	1	Appelez-nous	-
13	W11122006		Switch, Inf. 250v   (Replaces: 7403P181-60)	1			$ 145.12
14	7101P279-60		Screw W/washer	1	Appelez-nous	-
14	7404P029-60		Thermostat	1	Appelez-nous	-
15	7726P010-60		End Cap, Backguard (lt-chr)	1	Appelez-nous	-
15	7726P021-60		End Cap, Backguard (rt-chr)	1	Appelez-nous	-
15	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
16	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P247-60)	1			$ 91.35
17	7711P441-60		Retainer, Button	1	Appelez-nous	-
18	7711P386-60		Knob, Thermostat	1	Appelez-nous	-
