01 - Cover
02 - Cooktop Parts

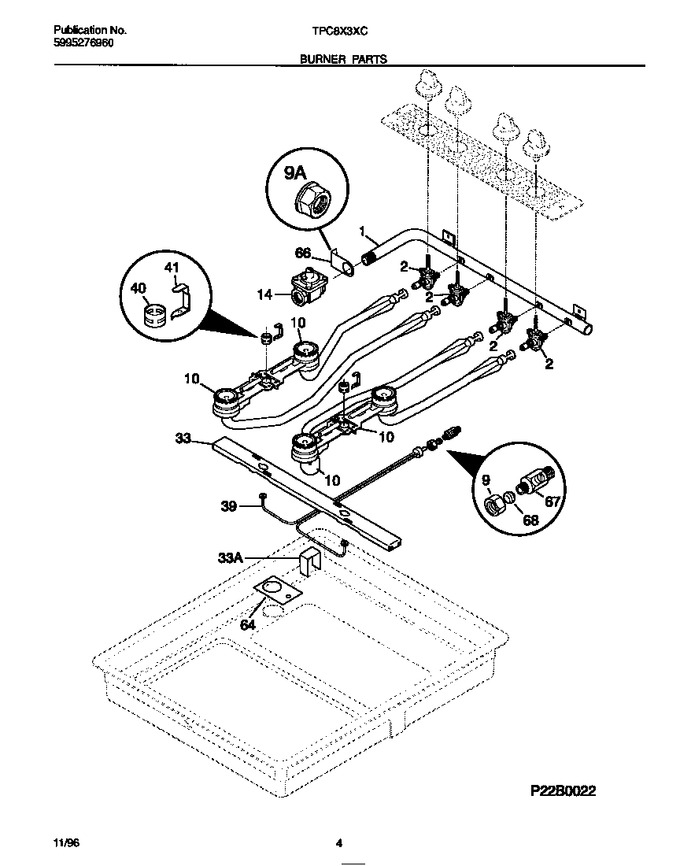

03 - Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303294770 | Manifold Pipe |
|
- | |||||
| 2 | 316009600 | Valve-top Burner, (4), With Mtg Screws |
|
- | |||||
| 9 | 3201276 | Nut-compression |
|
- | |||||
| 9 | 5303311307 | Nut,angle ,4-20 |
|
- | |||||
| 14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| 33 | 5303294763 | Bracket,support |
|
- | |||||
| 39 | 3201273 | Tubing-top Pilot, Dual |
|
- | |||||
| 40 | 5303201275 | Cap-top Pilot, (2) |
|
- | |||||
| 41 | 3202798 | Shield-pilot, Stainless Steel, (2) |
|
$ 55.18 | |||||
| 64 | 5303294750 | Retainer/bracket |
|
- | |||||
| 66 | 5303294765 | Angle, Manifold Pipe, Mtg |
|
- | |||||
| 67 | 5303201274 | Filter, Top Pilot |
|
- | |||||
| 68 | 5303201277 | Ferrule |
|
- | |||||
| 10A | 5303317771 | Burner-top, Front |
|
- | |||||
| 10B | 5303317770 | Burner-top, Rear |
|
- | |||||
| 33A | 5303294772 | Channel-burner Support |
|
- | |||||
| 33B | 5303311306 | Screw, 8-18 X 3/8 (not Illustrated) |
|
- |
