Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0091841 Air Duct Appelez-nous -
2 Y0089820 Yoke Wld Appelez-nous -
3 Y91843 Duct Appelez-nous -
4 0089845 Use A3214903 Appelez-nous -
5 0089821 Use D7168317 Appelez-nous -
6 Y89822 Gasket, Oven Cavity Appelez-nous -
7 Y0089823 Grease Shield Appelez-nous -
8 0091849 Bearing Appelez-nous -
9 0091850 Use C8720801 Appelez-nous -
10 Y0089824 Oven Tray Kit Appelez-nous -
11 Y90566 Gasket Appelez-nous -
12 Y0089861 Screw Appelez-nous -
13 0089974 Thermal Prot Appelez-nous -
14 0091852 Use B5695301 Appelez-nous -
15 0091853 Use B5695302 Appelez-nous -
16 Y0091854 Gasket,per Ft Appelez-nous -
17 91855 Gasket, Sponge Appelez-nous -
18 90389 Handle Only Appelez-nous -
19 0091085 Clip Appelez-nous -
20 0089975 Use B5789801 Appelez-nous -
21 Y89846 Scroll Appelez-nous -
22 Y0091858 Pop Rivet K Appelez-nous -
23 0091859 Blower Wheel Appelez-nous -
24 Y0091860 End Plate Wld Appelez-nous -
25 Y0090431 Screw A-k Appelez-nous -
26 91861 Brace, Scroll Appelez-nous -
27 0090418 Use M0218116 Appelez-nous -
28 90390 Terminal, Ground Appelez-nous -
29 0089976 Use C8783602 Appelez-nous -
30 0091864 Use B5736102 Appelez-nous -
31 90463 Screw Appelez-nous -
32 Y90464 Washer, Lock Appelez-nous -
33 0089871 Use B5744001 Appelez-nous -
34 Y0091866 Clip, Waterline Appelez-nous -
35 0091867 Use A0381401 Appelez-nous -
36 0089920 Use M0227303 Appelez-nous -
37 Y0091869 Bushing-stirrer Mt Appelez-nous -
38 WP59002061 Screw   (Replaces: Y0091900) Special Order $ 6.98

39 Y0089892 X$x Pad Appelez-nous -
40 0089977 Use A3299801 Appelez-nous -
41 Y0089978 Gasket Appelez-nous -
42 0089881 Bumper Appelez-nous -
43 90403 Clip Appelez-nous -
44 0089979 Use A3299701 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

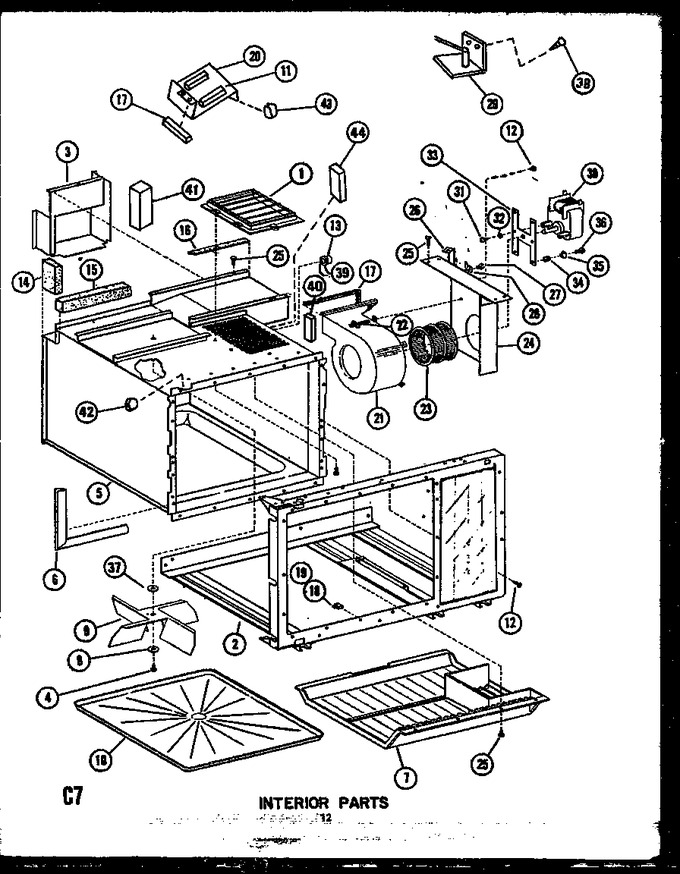

Diagram for RVP399
