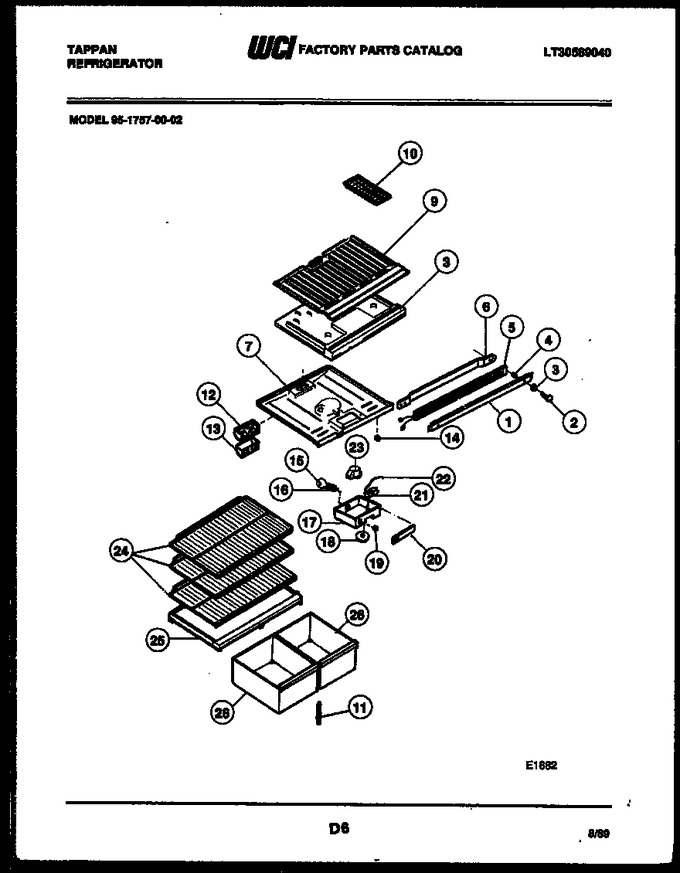

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916134		Mullion-almond		Appelez-nous	-
2	G183103		Screw-mullion (4)		Appelez-nous	-
3	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
4	3200464		Spacer-mullion (2)		Appelez-nous	-
5	08017408		Heater-mullion		Appelez-nous	-
6	G166709		Strap-mullion Mtg		Appelez-nous	-
7	3016378		Top Panel-refr		Appelez-nous	-
8	G176774		Divider-styrofoam		Appelez-nous	-
9	3001537		Bottom Panel-frzr		Appelez-nous	-
10	3001324		Ice Tray (2)		Appelez-nous	-
11	G166310-02		Support-pan Cover		Appelez-nous	-
12	G162675		Air Deflector		Appelez-nous	-
13	G162178		Cover, Deflector		Appelez-nous	-
14	09918806		Light Switch		Appelez-nous	-
15	3001179		Light Bulb		Appelez-nous	-
16	G168302		Light Socket		Appelez-nous	-
17	G174655-18		Control Box		Appelez-nous	-
18	3001335		Knob-temp Control		Appelez-nous	-
19	G178402-01		Switch-energy Saver		Appelez-nous	-
20	G178294-01		Label, Control Box		Appelez-nous	-
21	3200810		Control-temperature		Appelez-nous	-
22	08037932		Sleeve-plastic Tube		Appelez-nous	-
23	G187484		Timer-defrost		Appelez-nous	-
24	G178511-01		Shelf-refrigerator (3)		Appelez-nous	-
25	3001523		Cover-pan		Appelez-nous	-
26	3001522		Pan-storage (2)		Appelez-nous	-
17A	G187363		Screw		Appelez-nous	-
21A	G107080		Screw		Appelez-nous	-
23A	3001259		Screw-timer Mtg (2) (non-illustrated)		Appelez-nous	-
7A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
8A	G174818		Wiring Harn-divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
