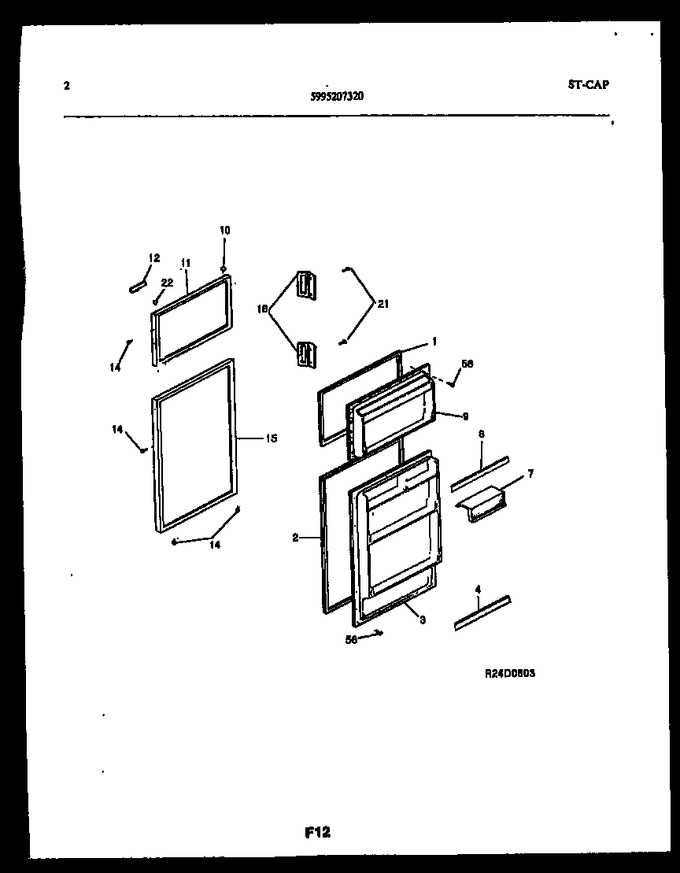

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Support
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001399 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303001398 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5318022801 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303274050 | Rack-door, (2) |
|
- | |||||
| 7 | 5303273191 | Door-dairy |
|
- | |||||
| 8 | 5303274049 | Rack-door |
|
- | |||||
| 9 | 5318023001 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916908 | Panel-frzr Door-white |
|
- | |||||
| 12 | 5303273164 | Nameplate Assy |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916910 | Panel-refr Door-white |
|
- | |||||
| 18 | 5303273079 | Handle-door-white-refr |
|
- | |||||
| 18 | 5303273081 | Handle-door-white-frzr |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *19666 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- |
