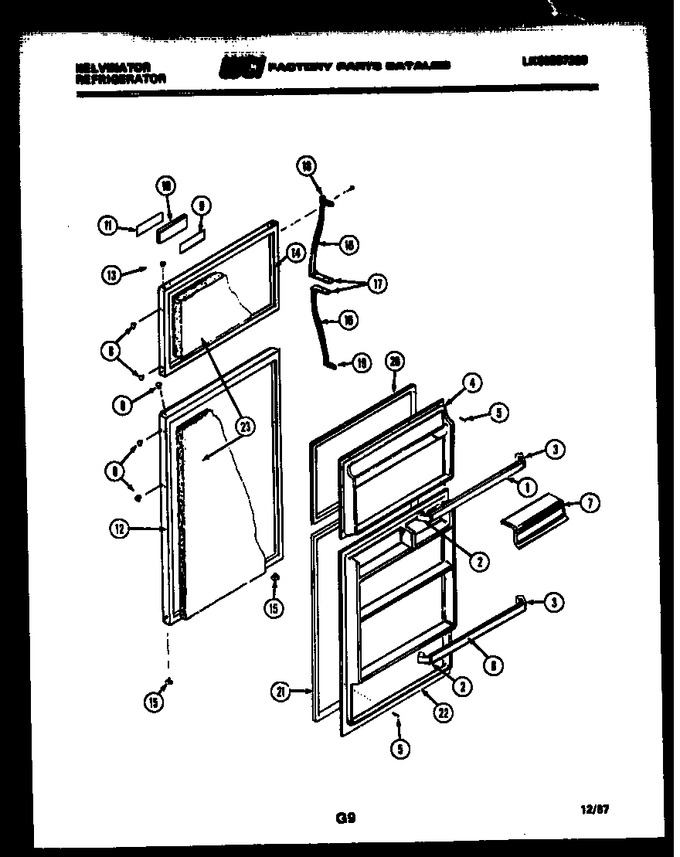

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016152		Rack Frzr Door		Appelez-nous	-
2	G178284-01		Support Ls (3)		Appelez-nous	-
3	G178287-01		Support Rs (3)		Appelez-nous	-
4	G183589-02		Inner Panel		Appelez-nous	-
5	G144049		Screw		Appelez-nous	-
6	3016153		Rack-refr Dr (2)		Appelez-nous	-
7	G161776-51		Dairy Door		Appelez-nous	-
8	G162977-08		Button Plug-avocado		Appelez-nous	-
9	G178292		Nameplate Frame		Appelez-nous	-
10	G189500-01		Nameplate Label		Appelez-nous	-
11	G153407-60		Tape-dbl Faced		Appelez-nous	-
12	G189689-08		Outer Panel-avoc.		Appelez-nous	-
13	G169332-08		Button Plug-avocado		Appelez-nous	-
14	G189685-08		Outer Panel-avoc		Appelez-nous	-
15	G183138		Bearing-hng (8)		Appelez-nous	-
16	G189454-02		Grip-handle (2)		Appelez-nous	-
17	G189453-01		End-handle (2)		Appelez-nous	-
18	G189452-01		End-handle-top		Appelez-nous	-
19	G189451-01		End-handle-btm		Appelez-nous	-
20	G186932-03		Gasket-frzr		Appelez-nous	-
21	G186932-11		Gasket-refr		Appelez-nous	-
22	G183591-02		Inner Panel		Appelez-nous	-
23	G89643		Insulation (bulk)		Appelez-nous	-
16A	G189456-01		Insert Grip (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
