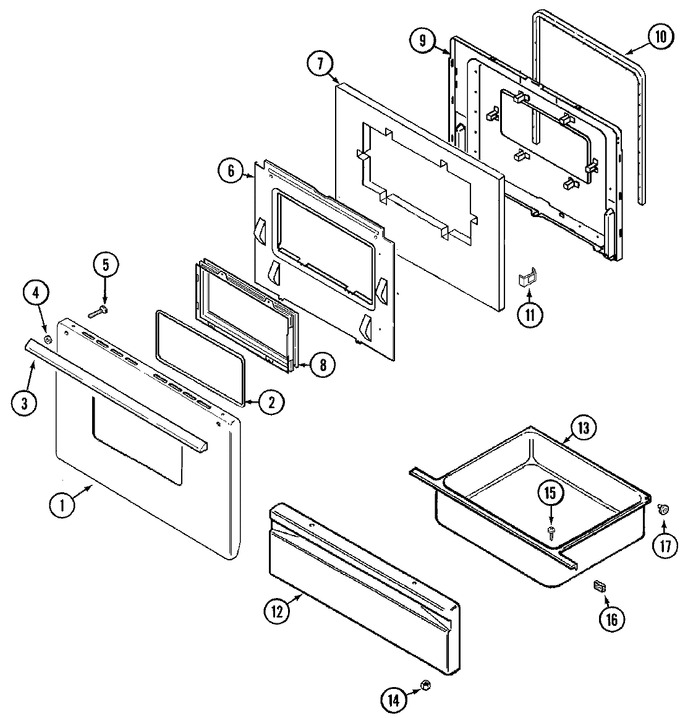

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F121-71		Panel, Door (wht)	27	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	27		Immediately	$ 12.62
2	7201P017-60		Gasket, Window	27			$ 52.69
3	WP2411F013-70		Handle, Door (chr)   (Replaces: 74001819)	27			$ 186.01
4	8010P084-60		Spacer, Handle (blk)	27	Appelez-nous	-
5	WP3387230		Screw   (Replaces: 74002483)	27		Immediately	$ 7.69
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	27		Immediately	$ 12.62
6	3601F236-51		Baffle, Door	27	Appelez-nous	-
7	4804F050-60		Insulation, Door 2``	27	Appelez-nous	-
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	27		Immediately	$ 12.62
8	7907P015-60		Window Asy.	27	Appelez-nous	-
9	74003247		Lining, Door	27	Appelez-nous	-
10	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	27		Immediately	$ 56.83
11	7112P034-60		Clip, Door	27	Appelez-nous	-
12	74003407		Panel, Drawer (wht)	27	Appelez-nous	-
13	71003042		Drawer, Storage	27	Appelez-nous	-
14	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	27			$ 4.00
15	WP7101P072-60		Screw   (Replaces: 7101P072-60)	27			$ 6.77
16	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	27			$ 11.95
17	74003566		Roller, Drawer	27	Appelez-nous	-
17	WP488130		Nut   (Replaces: 7103P082-60)	27			$ 6.27
