SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

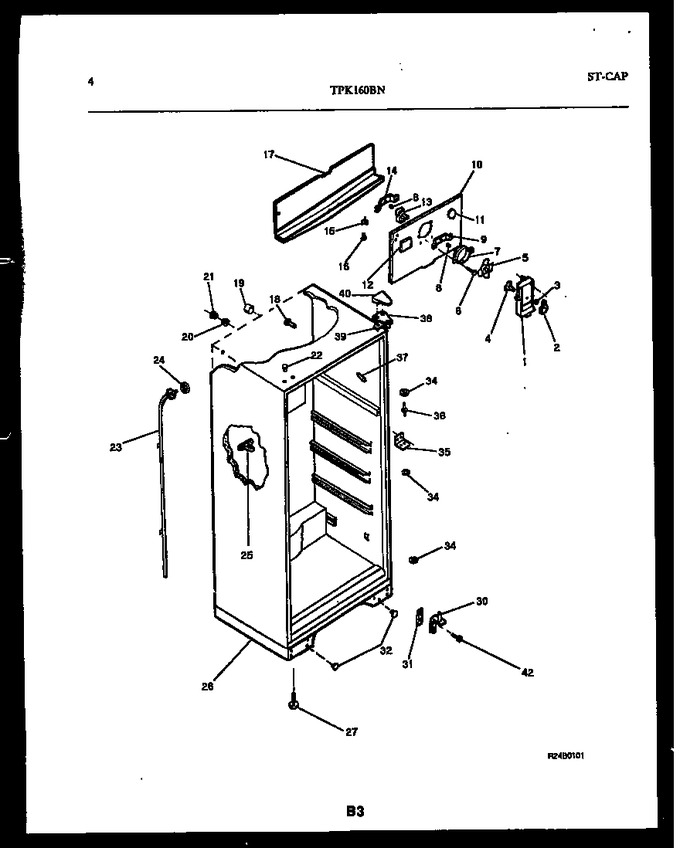

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015421		Cover-fan		Appelez-nous	-
2	5303270445		Knob-damper Control		Appelez-nous	-
3	5303001028		Nut-push-damper		Appelez-nous	-
4	5303001331		Damper-fan Cover				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	08002748		Screw		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303001226		Bracket-motor Mtg (front)		Appelez-nous	-
10	3001527		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug, Short Test Hole				$ 45.50
12	5308013636		Plug-decorative Im Hole		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	5303210353		Screw-connector Brkt, Hx Wash Hd Cla, 8-32(ca) X 1/2		Appelez-nous	-
17	08010005		Drain Trough		Appelez-nous	-
18	5308000097		Support, Coil Cover (2)		Appelez-nous	-
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001388		Button Plug, White, Upr Hinge Holes				$ 2.60
23	5303210377		Drain Tube, W/ Seal Ring				$ 109.31
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000056		Spout-drain Tube				$ 11.66
26	5303269889		Base-cabinet		Appelez-nous	-
27	5303212922		Screw-leveling				$ 10.71
10A	5303209814		Nut-evap Cover, ``u`` Type, No. 8 (a), (2) (non-illustrated)		Appelez-nous	-
1A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
25A	5303001361		Push Pin-drain Spout, (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
