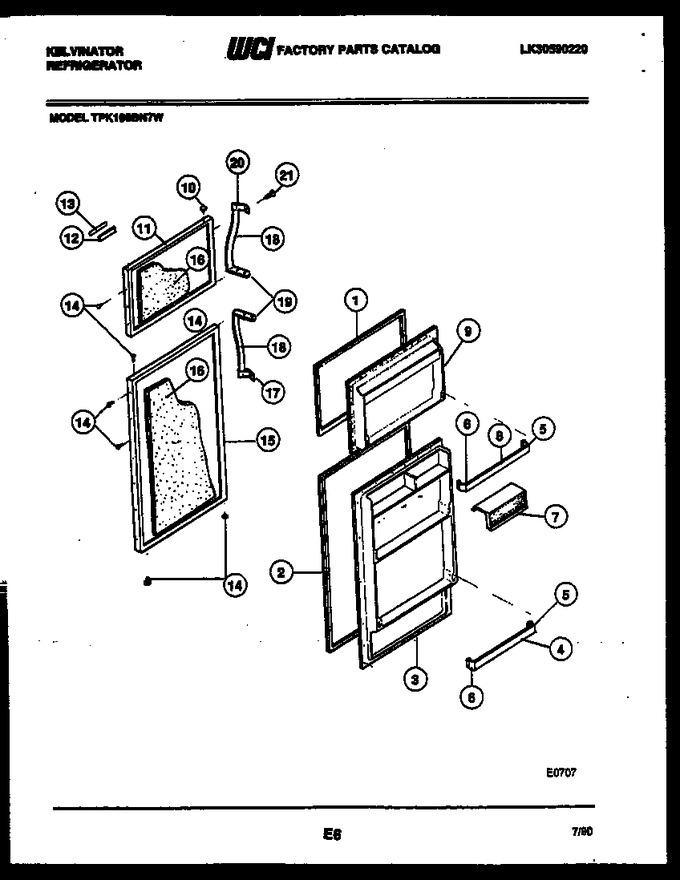

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-03		Gasket-freezer		Appelez-nous	-
2	G186932-11		Gasket-refrigerator		Appelez-nous	-
3	G183591-02		Inner Panel-refr		Appelez-nous	-
4	3016153		Rack-refrigerator Door (2)		Appelez-nous	-
5	G178287-01		Support Rs (3)		Appelez-nous	-
6	G178284-01		Support Ls (3)		Appelez-nous	-
7	G161776-51		Dairy Door		Appelez-nous	-
8	3016152		Rack-freezer Door		Appelez-nous	-
9	G183589-02		Inner Panel-freezer		Appelez-nous	-
10	G169332-11		Button Plug, Almond		Appelez-nous	-
11	3916297		Freezer Door-almond		Appelez-nous	-
12	G178292		Nameplate Frame		Appelez-nous	-
13	G189500-01		Label-nameplate		Appelez-nous	-
14	G162977-11		Button Plug-almond		Appelez-nous	-
15	3916302		Refrigerator Door-almond		Appelez-nous	-
16	G89643		Insulation (bulk)		Appelez-nous	-
17	G189451-01		Handle End-bottom		Appelez-nous	-
18	3201377		Grip-handle (2)		Appelez-nous	-
19	G189453-01		Handle End (2)		Appelez-nous	-
20	G189452-01		Handle End-top		Appelez-nous	-
21	G185566		Screw		Appelez-nous	-
11A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
12A	G153407-12		Tape-nameplate (non-illustrated)		Appelez-nous	-
15A	G183138		Bearing, Hinge (4) (non-illustrated)		Appelez-nous	-
18A	3200995		Insert Grip (2) (non-illustrated)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
9A	G162585		Screw		Appelez-nous	-
