01 - Body

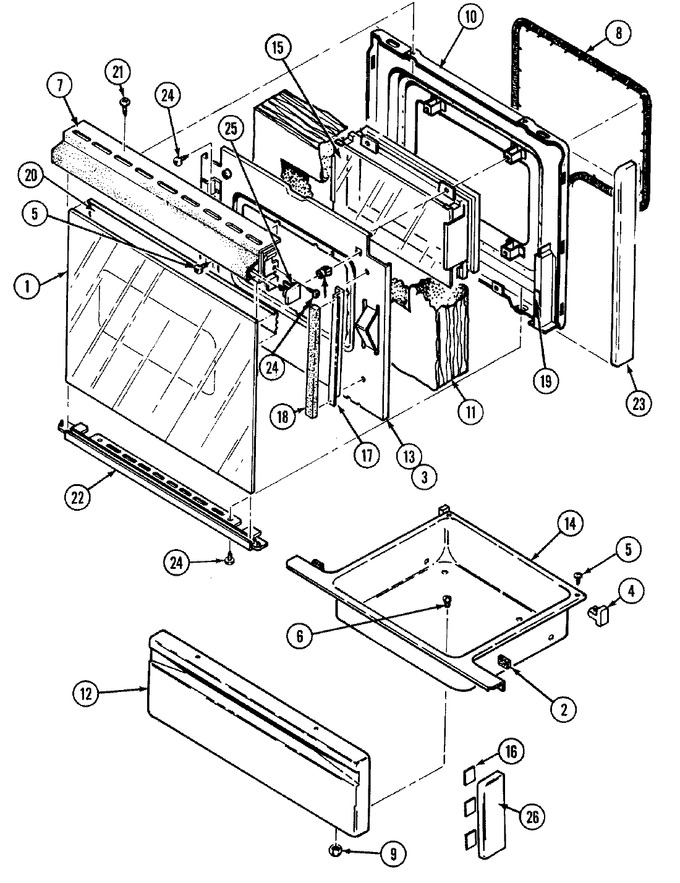

02 - Door/drawer (6551xrx & 6651xrx)
03 - Main Top
04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P321-60 | Glass, Door (blk) | 01 |
|
- | ||||
| 2 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 01 |
|
$ 11.95 | ||||
| 3 | 8010P085-60 | Spacer, Rubber | 01 |
|
- | ||||
| 4 | 8004P026-60 | Support, Drawer (rear) | 01 |
|
$ 9.29 | ||||
| 5 | 7101P291-60 | Screw | 01 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 7 | 7701P103-60 | Handle, Door (blk) | 01 |
|
- | ||||
| 8 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 01 |
|
Immediately | $ 56.83 | |||
| 9 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 10 | 2402W213-19 | Lining, Door | 01 |
|
- | ||||
| 11 | 4804F012-60 | Insulation Door | 01 |
|
- | ||||
| 12 | 2416F038-65 | Panel, Drawer (blk) | 01 |
|
- | ||||
| 13 | 3601F232-45 | Baffle, Door | 01 |
|
- | ||||
| 14 | 3405F014-80 | Drawer, Storage | 01 |
|
- | ||||
| 15 | 7907P021-60 | Window Asy. | 01 |
|
- | ||||
| 16 | 8270P098-60 | Tape | 01 |
|
$ 5.02 | ||||
| 17 | 3818F052-51 | Channel, Air | 01 |
|
- | ||||
| 18 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 19 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 20 | 8270P090-60 | Tape, Foil (3`` Wide) | 01 |
|
- | ||||
| 21 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 22 | 7744P105-60 | Trim, Bottom (blk)----na | 01 |
|
- | ||||
| 23 | 7744P055-60 | End Cap, Oven Door (blk) | 01 |
|
- | ||||
| 24 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 25 | 7744P076-60 | End Cap (lt) | 01 |
|
- | ||||
| 25 | 7744P075-60 | End Cap (rt) | 01 |
|
- | ||||
| 26 | 7744P068-60 | End Cap (blk) | 01 |
|
- |
