01 - Body
02 - Door/drawer (6551xux)
03 - Door/drawer (xub Series 27)
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

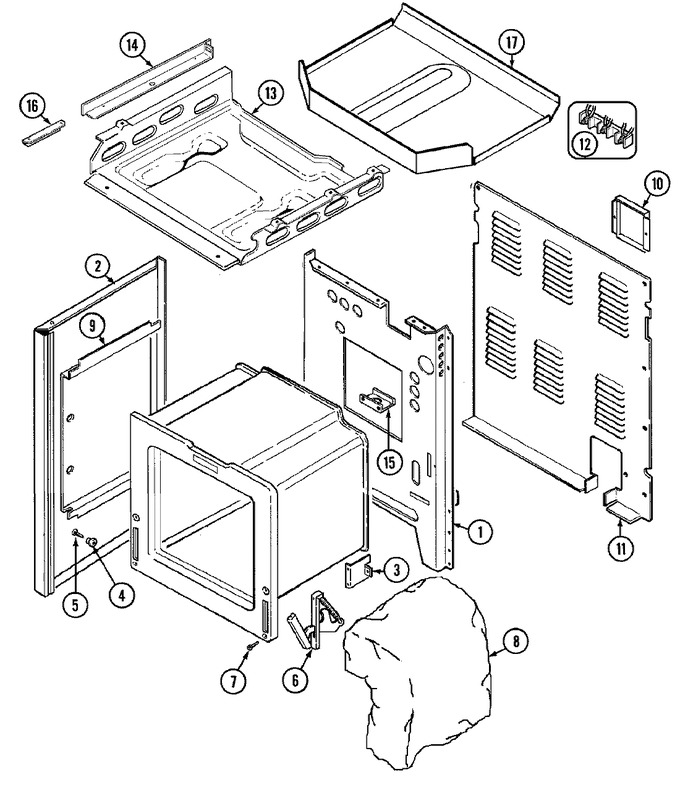

| 1 | 74001873 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F107-70 | Panel, Side (rt-blk) | 10 |
|
- | ||||
| 2 | 2618F106-70 | Panel, Side (lt-blk) | 10 |
|
- | ||||
| 3 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 4 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 5 | W11772394 | Screw (Replaces: 7101P334-60) | 10 |
|
Immediately | $ 10.94 | |||
| 6 | WP74011140 | Hinge, Door (Replaces: 74003243) | 26 |
|
Immediately | $ 120.21 | |||
| 6 | 7106P056-60 | Hinge | 10 |
|
- | ||||
| 7 | WP4159193 | Screw (Replaces: 7101P112-60) | 10 |
|
$ 4.29 | ||||
| 8 | 4804F029-60 | Insulation, Wrap | 10 |
|
- | ||||
| 8 | 4804F030-60 | Insulation, Back & Bottom | 10 |
|
- | ||||
| 8 | 4820F001-59 | Strap, Retainer | 10 |
|
- | ||||
| 9 | 3804F103-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 10 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 11 | 4005F356-51 | Cover, Main Back | 10 |
|
- | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 13 | 74002357 | Box, Burner | 10 |
|
- | ||||
| 14 | 3604F213-51 | Shield, Heat (lt) | 10 |
|
- | ||||
| 14 | 3604F214-51 | Shield, Heat (rt) | 10 |
|
- | ||||
| 15 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 16 | 3801F327-51 | Bracket | 10 |
|
- | ||||
| 17 | 74001549 | Shield, Wire | 10 |
|
- |
