SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


07 - System And Automatic Defrost Parts

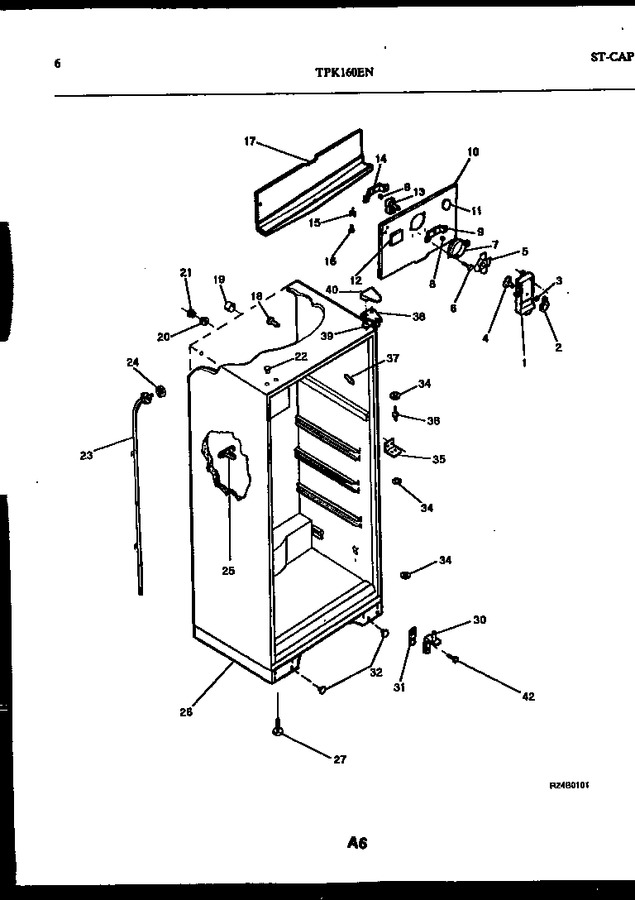

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
34	5308000186		Washer-nylon, 34 X 5/8 O.d., (3)			Immediately	$ 6.02
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202338		Trim-cabinet Corner, Harvest Wheat, (4)		Appelez-nous	-
38	5308012843		Bracket-upper Hinge				$ 71.47
39	5303001037		Shim - Upper Hinge				$ 12.39
40	5303001665		Cover-upper Hinge, Harvest Wheat		Appelez-nous	-
42	5303001320		Screw-hng/gusset Mtg, Hex Wa Hd Mach, 1/4-20 X 5/8, (6)		Appelez-nous	-
*18383	5308016571		Button Plug-liner				$ 4.79
35A	5303012258		Screw, L/p Hex Wa Hd, 10 24 X 7/8, Type 23 S (non-illustrated)		Appelez-nous	-
38A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
38B	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44

    View Diagram in Separate Window       Print Part List
