Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2   (Replaces: 359262) In-Stock Immediately $ 7.07

2 WP89503 Hose, Inlet (2) (alt.)   (Replaces: 385057) In-Stock Immediately $ 21.68

2 WP89503 Hose, Inlet (2) (alt.)   (Replaces: 366108) In-Stock Immediately $ 21.68

2 WP89503 Hose, Inlet (2) (alt.)   (Replaces: 81339) In-Stock Immediately $ 21.68

2 WP89503 Hose, Inlet (2)   (Replaces: 660028) In-Stock Immediately $ 21.68

3 WP16123 Washer, Rubber (4)   (Replaces: 16123) Special Order $ 6.93

4 WP3390631 Screw, No. 10-16 X 3/8   (Replaces: 62863) Special Order $ 7.04

5 85279 Panel, Rear Appelez-nous -
6 WP681414 Screw, No.10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

7 384797 Cabinet (golden Harvest) Appelez-nous -
7 384794 Cabinet (almond) Appelez-nous -
7 384793 Cabinet (white) Appelez-nous -
7 386478 Cabinet (platinum) Appelez-nous -
7 386477 Cabinet (toast) Appelez-nous -
8 WP359364 Clip, Leveling Mechanism (2)   (Replaces: 359364) In-Stock Immediately $ 7.06

9 364089 Wire, Ground Appelez-nous -
10 359059 Leveling Link Assembly Appelez-nous -
11 WP358594 Foot, Rear (2)   (Replaces: 358594) Special Order $ 12.24

12 18849 Pad, Hinge (2) Special Order $ 18.13

13 18775 Hinge, R.h. Appelez-nous -
13 92657 Hinge, L.h. Appelez-nous -
14 92667 Cord, Power (120 Volt) Appelez-nous -
15 660749 Valve, Mixing Appelez-nous -
15 358277 Valve, Mixing (alt.) In-Stock Immediately $ 78.87

15 358971 Valve, Mixing (alt.) (serviced Only As Complete Assemblies) Appelez-nous -
16 358336 Spring, Snubber   (Replaces: 357977) In-Stock Immediately $ 4.80

17 358336 Snubber In-Stock Immediately $ 4.80

18 98669 Locator, Top (2) Special Order $ 12.03

19 WP96160 Screen, Filter   (Replaces: 96160) Special Order $ 10.54

20 WP367594 Foot, Front (2)   (Replaces: 367594) In-Stock Immediately $ 18.46

21 356459 Plate, Gusset (2) Appelez-nous -
22 WP18776 Lock, Front Top (2)   (Replaces: 18776) In-Stock Immediately $ 11.41

23 WP681414 Screw, 10-16 X 1/2   (Replaces: 687128) In-Stock Immediately $ 7.07

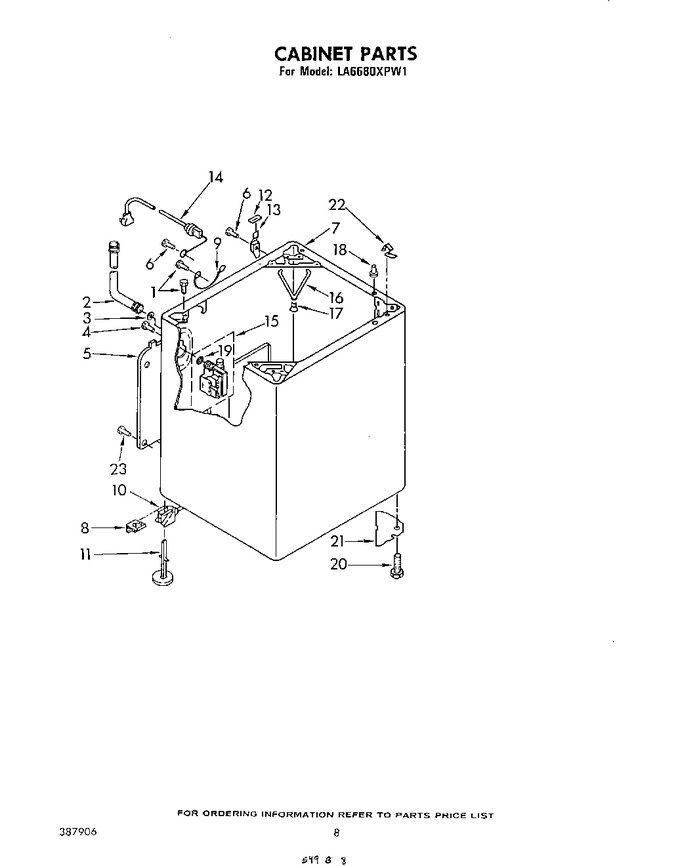

    View Diagram in Separate Window     Print Icon   Print Part List
