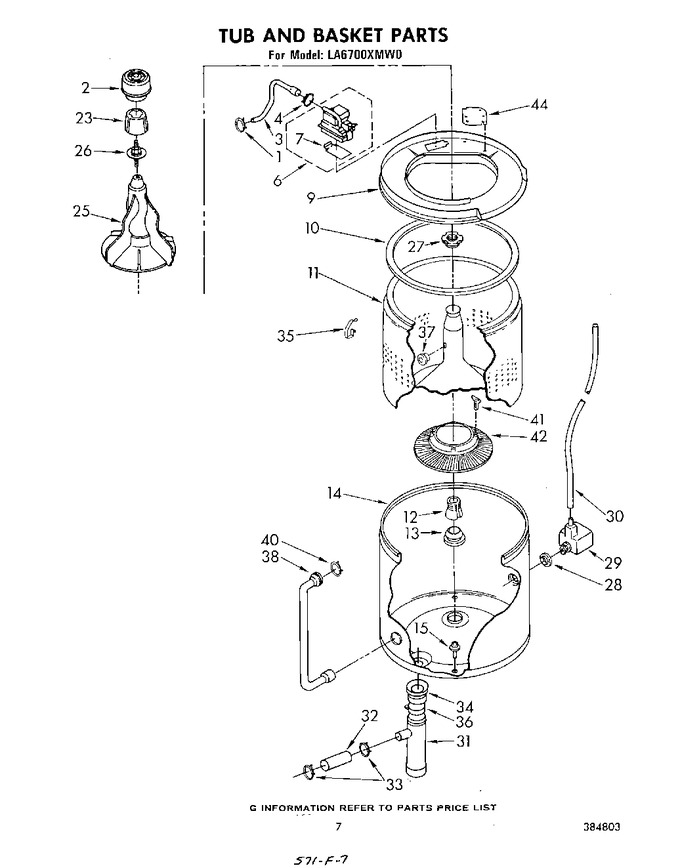

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
2	88932		Dispenser, Rinse		Appelez-nous	-
3	356349		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
9	381971		Ring, Tub (includes Illus. 44)		Appelez-nous	-
10	383553		Seal, Tub Ring		Appelez-nous	-
11	383960		Basket		Appelez-nous	-
12	96384		Block, Drive				$ 32.89
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	384125		Tub		Appelez-nous	-
15	WP358237		Screw & Washer, Tub To Baseplate (4)   (Replaces: 370571)			Immediately	$ 7.97
23	358431		Cap, Agitator		Appelez-nous	-
25	383952		Agitator Assembly		Appelez-nous	-
26	358440		Stud & Seal Assembly		Appelez-nous	-
27	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal				$ 5.84
29	360804		Air Dome Assembly		Appelez-nous	-
30	WP353244		Hose, Pressure Switch   (Replaces: 353405)			Immediately	$ 53.94
31	84091		Manifold		Appelez-nous	-
32	DE81-06162A		Hose, Pump To Manifold   (Replaces: 92231)				$ 78.75
33	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
34	93553		Hose, Tub Outlet		Appelez-nous	-
35	359763		Clip, Tub Ring (4)		Appelez-nous	-
36	9421321		Clip, Hose		Appelez-nous	-
37	21265		Stopper (2)		Appelez-nous	-
38	352818		Hose, Dispenser		Appelez-nous	-
40	WP596669		Clamp, Hose   (Replaces: 287859)			Immediately	$ 7.56
41	383718		Clip, Filter (4)		Appelez-nous	-
42	383719		Filter		Appelez-nous	-
44	355852		Plate, Snubber		Appelez-nous	-
