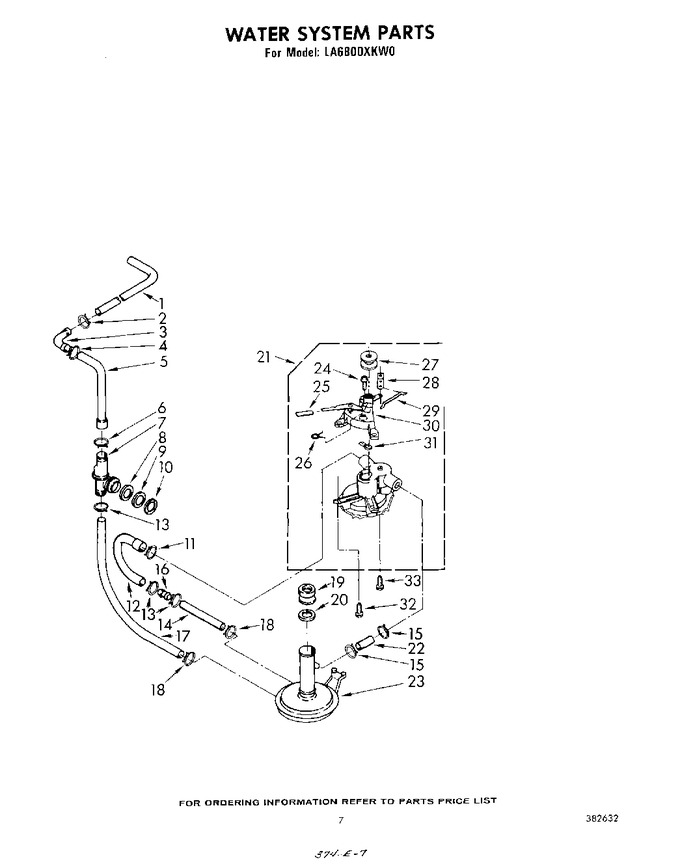

05 - Water System


06 - Gearcase


07 - Basket Drive And Brake


08 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	96865		Hose, Gooseneck		Appelez-nous	-
2	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
3	95440		Connector, Hose				$ 22.55
4	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
5	96816		Hose		Appelez-nous	-
6	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 7.67
7	88677		Valve, Side Check		Appelez-nous	-
8	DE81-04739A		Washer, Rubber   (Replaces: 92235)				$ 74.11
9	DE81-03541A		Washer, Fiber   (Replaces: 92232)				$ 107.38
10	DE81-06164A		Nut, Spanner   (Replaces: 92229)				$ 125.78
11	WP616099		Clamp, Hose   (Replaces: 272859)			Immediately	$ 7.03
12	355152		Hose		Appelez-nous	-
13	272857		Clamp, Hose		Appelez-nous	-
14	356167		Hose, Pump To Filter		Appelez-nous	-
15	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
16	WP16272		Connector, Hose   (Replaces: 16272)				$ 7.04
17	355151		Hose		Appelez-nous	-
18	WP285655		Clamp, Hose   (Replaces: 371500)			Immediately	$ 7.55
19	93553		Hose, Tub Outlet		Appelez-nous	-
20	9421321		Clamp, Hose		Appelez-nous	-
21	350365		Pump Assembly   (Replaces: 358036)			Immediately	$ 116.12
22	DE81-06162A		Hose, Pump To Manifold   (Replaces: 92231)				$ 78.75
23	363358		Manifold & Filter Assembly		Appelez-nous	-
24	WP273556		Screw, 10-12 X 5/8   (Replaces: 273556)			Immediately	$ 7.04
25	96175		Sleeve		Appelez-nous	-
26	96266		Spring, Toggle		Appelez-nous	-
27	16113		Pulley		Appelez-nous	-
28	355538		Lever, Valve		Appelez-nous	-
29	96264		Rod, Connecting		Appelez-nous	-
30	87290		Bearing Block Assembly		Appelez-nous	-
31	96265		Wick, Oil		Appelez-nous	-
32	386011		Screw, Pump To Gearcase   (Replaces: 96867)		Appelez-nous	-
33	355612		Screw, 5/16-18 X 1-3/8		Appelez-nous	-
