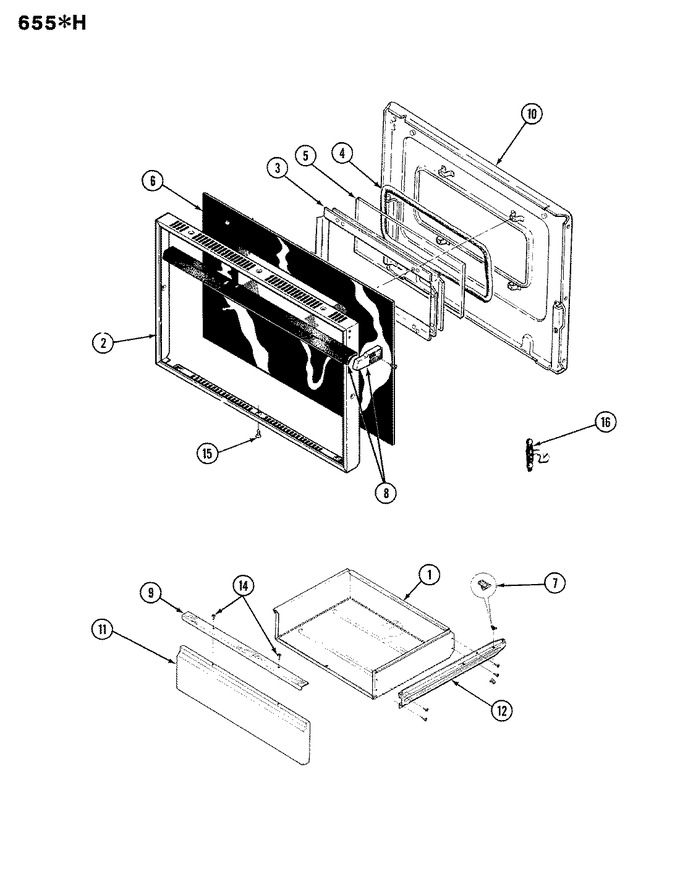

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 2 | 7706P178-60 | Frame, Door | 1 |
|
- | ||||
| 3 | 3603F013-80 | Frame, Window----na | 1 |
|
- | ||||
| 4 | 7201P017-60 | Gasket, Window | 1 |
|
$ 52.69 | ||||
| 5 | 7902P035-60 | Glass, Door Inner | 1 |
|
- | ||||
| 6 | 7902P274-60 | Glass, Door | 1 |
|
- | ||||
| 7 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 7 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 8 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 9 | 7728P012-60 | Insert, Oven Door Handle | 1 |
|
- | ||||
| 9 | 7701P014-74 | Handle, Drawer Almond | 1 |
|
- | ||||
| 10 | 2402W091-23 | Lining Assy, Ov Dr | 1 |
|
- | ||||
| 11 | 2416F006-74 | Panel, Service Drawer Almond | 1 |
|
- | ||||
| 12 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 12 | 3406J077 | Runner, Outer | 1 |
|
- | ||||
| 13 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 14 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 15 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 15 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 16 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 16 | 8019P002-60 | Strap | 1 |
|
- |
