SELECT A DIAGRAM

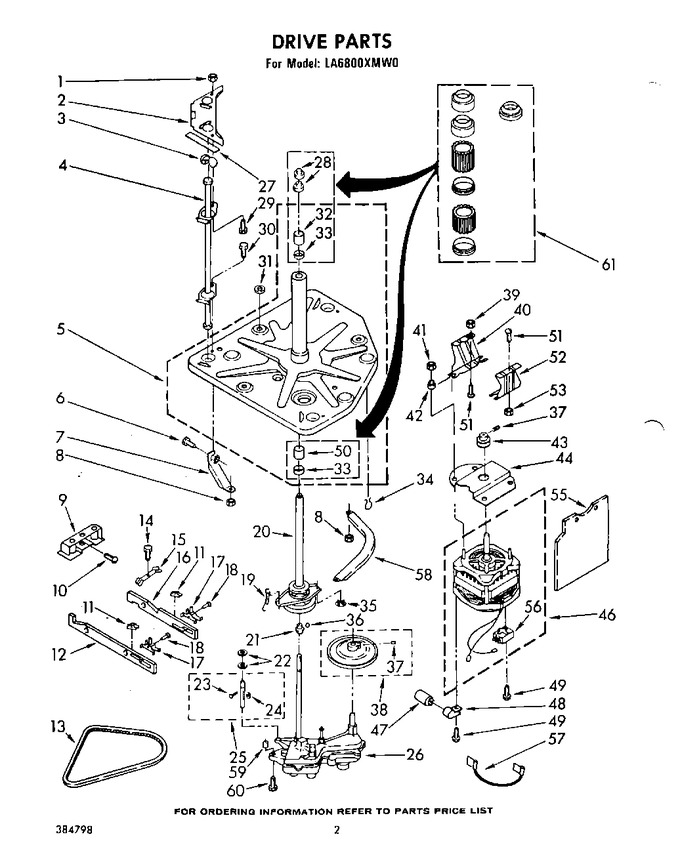

02 - Drive


03 - Water Pump


04 - Top And Console


05 - Cabinet


06 - Tub And Basket


07 - Gear Case


08 - Basket Drive And Brake


09 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	90984		Nut, 5/16-18		Appelez-nous	-
2	353230		Cover, Front Gusset		Appelez-nous	-
2	352143		Cover, Rear Gusset (2)		Appelez-nous	-
3	91073		Ball, Suspension (6)		Appelez-nous	-
4	359678		Rod, Suspension (3)		Appelez-nous	-
5	359721		Baseplate & Centerpost		Appelez-nous	-
6	WP3400516		Screw   (Replaces: 98062)			Immediately	$ 6.47
7	353301		Brace, Baseplate		Appelez-nous	-
8	96101		Nut, 5/16-24		Appelez-nous	-
9	365998		Magnet		Appelez-nous	-
10	16135		Screw, Taper End		Appelez-nous	-
11	95462		Guide, Cam Bar		Appelez-nous	-
12	350532		Cam, Bar Spin   (Replaces: 354838)		Appelez-nous	-
13	WP95405		Belt, ``v``   (Replaces: 95405)				$ 46.08
14	98001		Screw, 1/4-28 X 1/2		Appelez-nous	-
15	94726		Spring, Brake		Appelez-nous	-
16	18642		Cam, Agitator & Pump				$ 24.51
17	84866		Plunger		Appelez-nous	-
18	354959		Rivet		Appelez-nous	-
19	17261		Spring, Brake Yoke		Appelez-nous	-
20	359699		Basket Drive & Brake (for Further Breakdown Refer To Page 9)		Appelez-nous	-
21	358586		Support, Spin Tube		Appelez-nous	-
22	90315		Washer (2)		Appelez-nous	-
23	90532		Pin, Roll		Appelez-nous	-
24	92119		Roller, Basket Clutch Shaft		Appelez-nous	-
25	359460		Shaft, Basket Clutch		Appelez-nous	-
26	358483		Gearcase For Further Breakdown Refer To Page 8)		Appelez-nous	-
27	352434		Pad, Gusset Cover (6)		Appelez-nous	-
28	WP8577376		Seal, Centerpost (2)   (Replaces: 356934)			Immediately	$ 6.47
29	126211		Bolt, 5/16 X 5/8 (2)		Appelez-nous	-
29	126358		Bolt, 5/16 X 1 (3)		Appelez-nous	-
29	353770		Bolt, Snubber (1)		Appelez-nous	-
30	98048		Bolt, 5/16-24		Appelez-nous	-
31	17235		Gasket, Tub (7)				$ 249.30
32	WP8546455		Bearing, Upper (1)   (Replaces: 54207)			Immediately	$ 25.16
33	W11095997		Seal, Centerpost (2)   (Replaces: 660943)			Immediately	$ 20.07
33	W11095997		Seal, Centerpost (2) (alt.)   (Replaces: 357409)			Immediately	$ 20.07
33	W11095997		Seal, Centerpost (2) (alt.)   (Replaces: 359449)			Immediately	$ 20.07
34	16515		Clip, Harness				$ 17.60
35	356444		Retainer, Brake Yoke				$ 5.33
36	358585		Ball		Appelez-nous	-
37	355345		Setscrew, 5/16-18 X 1/2				$ 5.04
38	360840		Pulley, Main Drive				$ 35.96
39	96016		Locknut, 3/8-16		Appelez-nous	-
40	85286		Bracket, Motor Mounting		Appelez-nous	-
41	98023		Nut (4)		Appelez-nous	-
42	19138		Grommet, Motor Bracket (4)		Appelez-nous	-
43	DE81-05677A		Pulley, Motor (60 Hz.)   (Replaces: 92216)				$ 64.04
44	356217		Shield, Motor (upper)		Appelez-nous	-
46	370653		Motor, 60 Hz. (alt.) (general Electric)		Appelez-nous	-
46	357822		Motor, 60 Hz. (alt.) (emerson)		Appelez-nous	-
46	660604		Motor, 60 Hz.		Appelez-nous	-
47	WP8572717		Capacitor, Motor Start   (Replaces: 357021)			Immediately	$ 72.13
48	357030		Clamp, Capacitor				$ 18.98
49	WP3390631		Screw, Motor Grounding   (Replaces: 9420601)				$ 7.04
50	354195		Bearing, Lower		Appelez-nous	-
51	98537		Bolt, 3/8-16 X 3/4		Appelez-nous	-
52	93549		Bracket, Motor Mounting		Appelez-nous	-
53	95721		Nut, 3/8-16		Appelez-nous	-
55	359719		Shield, Motor		Appelez-nous	-
56	362738		Switch, Motor Start (use W/emerson Motor)		Appelez-nous	-
56	168A5775BNP1		Switch, Motor Start ((use W/general Electric Motor))   (Replaces: 359642)				$ 28.88
57	370950		Wire, Jumper		Appelez-nous	-
58	351500		Brace, Manifold (1)		Appelez-nous	-
58	351499		Brace, Motor (1)		Appelez-nous	-
59	16062		Spacer, Stud & Gearcase		Appelez-nous	-
60	90877		Screw & Washer		Appelez-nous	-
61	285134		Bearing Kit, Centerpost (includes Illus. 28, 32, 33 & 50)				$ 42.12

    View Diagram in Separate Window       Print Part List
